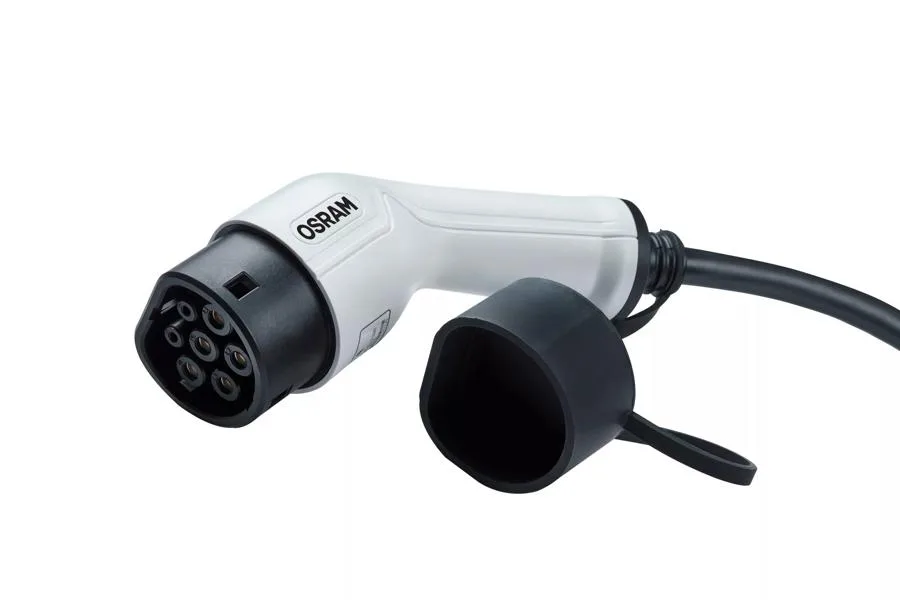

BATTERYcharge 7PIN | 1PHASE | 16 AMP OCC21605
Battery Care & Charging · Charging cables for electric vehicles
Drive with OSRAM into a more emission-free future
Discover the world of electric driving with OSRAM. Charge your all-electric or plug-in hybrid vehicle type 2 at any 16 A charging station (1 phase) equipped with a type 2 plug. The charging cable is equipped with ergonomic handles for optimal handling and has a cable length of 5 meters. It is suitable for use at public charging stations and at home. In addition, the charging cables are equipped with dust protection caps and tested for waterproofness according to IP65 and shock resistance according to IK10. Even when connected, the electrical contact points are protected against the ingress of dust and splash water in accordance with IP65 and IK10. The scope of delivery also includes a durable, compact storage bag to neatly store the cable after charging. In addition, the product is TÜV and CE certified and comes with a 2-year guarantee*
Πλεονεκτήματα Προϊόντος
- Type 2 to Type 2 — Charge at home and on the move Type 2 to Type 2 7PIN | 1PHASE
- 16 Ampere — Connects to any charging unit or station with a 16A (1 phase) type 2 connection
- 3.6 kWh — Charge your 60kW battery in approximately 16 hours
- 5m cable length — Ergonomic handles for optimal handling and a cable length of 5 meters
Επιλογές Συσκευασίας & Προσφορά
Εισαγάγετε ποσότητα για τη συσκευασία που χρειάζεστε και προσθέστε την στη λίστα προσφοράς, ώστε να γνωρίζουμε ακριβώς ποια συσκευασία θέλετε.
| Συσκευασία | Περιεχόμενο | EAN | Ποσ. | Προσθήκη |
|---|---|---|---|---|
| SLEEVES | 1 τεμ. | 4052899624115 | ||
| SHIPPING BOX | 4 τεμ. | 4052899624184 |
Τεχνικά Δεδομένα
| Product information | |
|---|---|
| Storage Case | Yes |
| Number Of Phases | 1 |
| Vehicle Charger Type | Type2 |
| Charging Point Charger Type | Type2 |
| General Product Information | |
| Global order reference | OCC21605 |
| Electrical Data | |
| Nominal wattage | 3600 W |
| Nominal voltage | 240 V |
| Nominal current | 16 A |
| Physical Attributes & Dimensions | |
| Height | 120.0 mm |
| Length | 5000 mm |
| Width | 70.0 mm |
| Lifetime Data | |
| Guarantee | 2 years |
| Additional product data | |
| Operating Temperature | -40 +80 °C |
| Certificates & standards | |
| IK Class | IK10 |
| Standards | TÜV / CE |
| Type of protection | IP65 |
