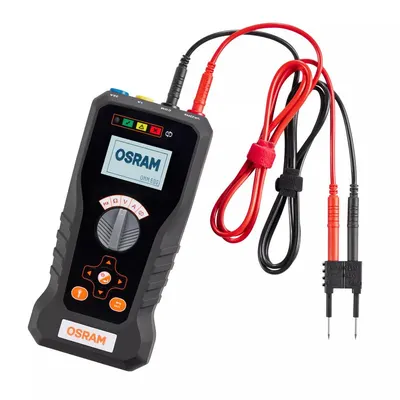

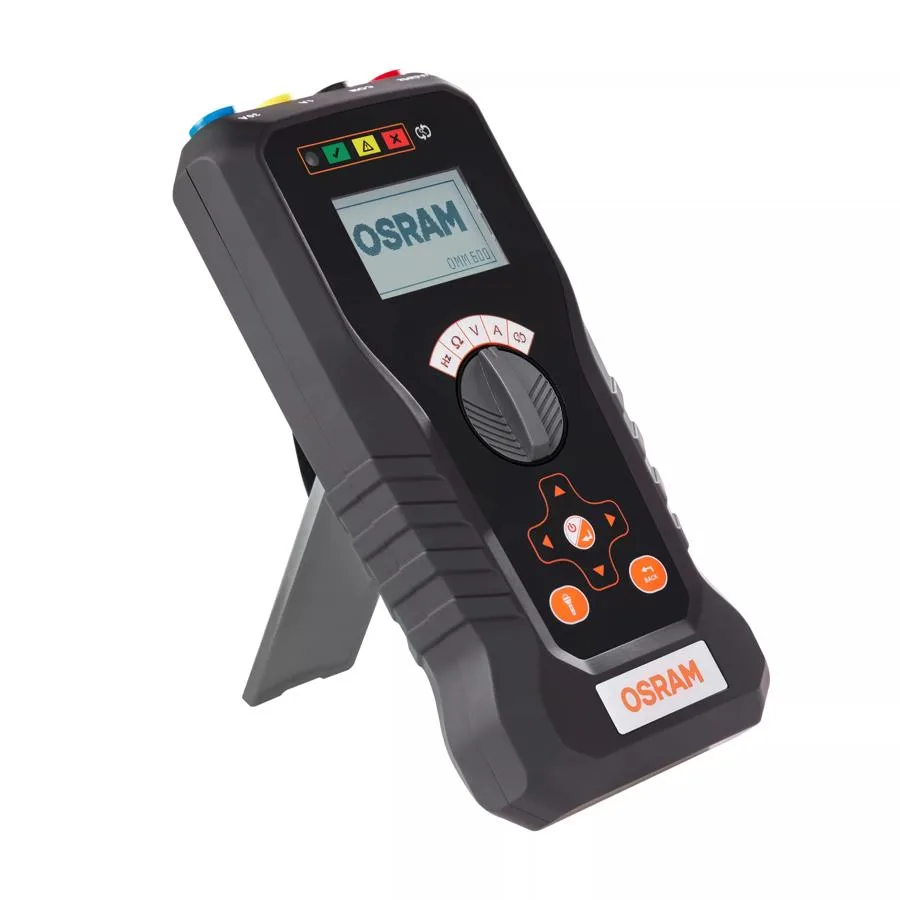

BATTERYtest PRO Multi-Function Automotive Tester OMM600
Battery Care & Charging · Vehicle Diagnostic Equipment
Multi-Function Automotive Tester for finding electrical vehicle faults
This multi-function unit will test and find faults with voltage, starter test and alternator start processes. It will also run frequency and duty cycles for the testing of sensors and continuity and resistance modes for locating wiring faults. An electrical analyser specifically designed for automotive functions.
Πλεονεκτήματα Προϊόντος
- Auto ranging with LED screen — Automatically selects 6/12/24V battery testing with a clear and easy to understand traffic light result
- Rapid current testing with in-line fuse testing — Find faults with current up to 80A without removing fuses
- 12/24V Starter Test with extra long cable probes — Checks the battery during engine cranking and can be done by an individual due to the extra-long cable probes
- Normal and Smart alternator test for 12 and 24V systems — Able to diagnose charging capacity of the vehicle alternator to ensure that there is sufficient charge for the battery and provide accurate battery performance data
Επιλογές Συσκευασίας & Προσφορά
Εισαγάγετε ποσότητα για τη συσκευασία που χρειάζεστε και προσθέστε την στη λίστα προσφοράς, ώστε να γνωρίζουμε ακριβώς ποια συσκευασία θέλετε.
| Συσκευασία | Περιεχόμενο | EAN | Ποσ. | Προσθήκη |
|---|---|---|---|---|
| FOLDING BOX | 1 τεμ. | 4052899631489 | ||
| SHIPPING BOX | 1 τεμ. | 4052899631496 |
Τεχνικά Δεδομένα
| Product information | |
|---|---|
| Application (Category and Product specific) | Multi-function Automotive tester |
| General Product Information | |
| Global order reference | OMM600 |
| Electrical Data | |
| Test voltage | 6/12/24 V |
| Started Test | 12/24 V |
| Alternator Test | 12/24 V |
| Voltage Range | ±2% DC 0 - 50 V |
| Current (Parallel) | 0 - 80A ±3%, 3A - 30A (Mini fuse),3A - 40A (Standard ATC fuse), 20A - 80A (Maxi fuse) |
| Current (In-line) | 1 - 999mA ±1% (Low range), 1 - 30A ±2% (High range) |
| Resistance | 0 - 1MΩ ±2% |
| Frequency | 1Hz - 20KHz ±1Hz |
| Continuity | 0 - 500 Ω |
| LED Test | Input Volts: 3.5V (Max.) |
| Physical Attributes & Dimensions | |
| Width | 42.0 mm |
| Length | 87.8 mm |
| Height | 190.0 mm |
| Dimensions & weight | |
| Clamps Cable Length | (total) 3.0 m |
| Additional product data | |
| Battery Connection | Crocodile Clamps |
| Operating Temperature | 0 - 50 °C |
| Type of Battery | 3 x AAA (not included) |
| Recommended to Use With | Motorcycle, Car, Truck, Van, Boat |
