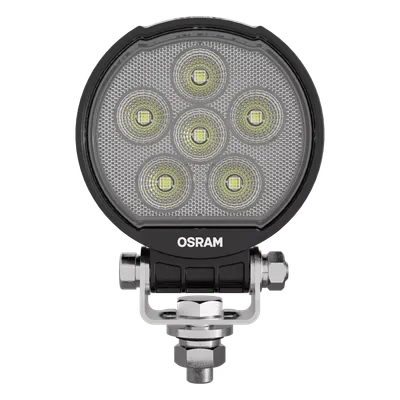

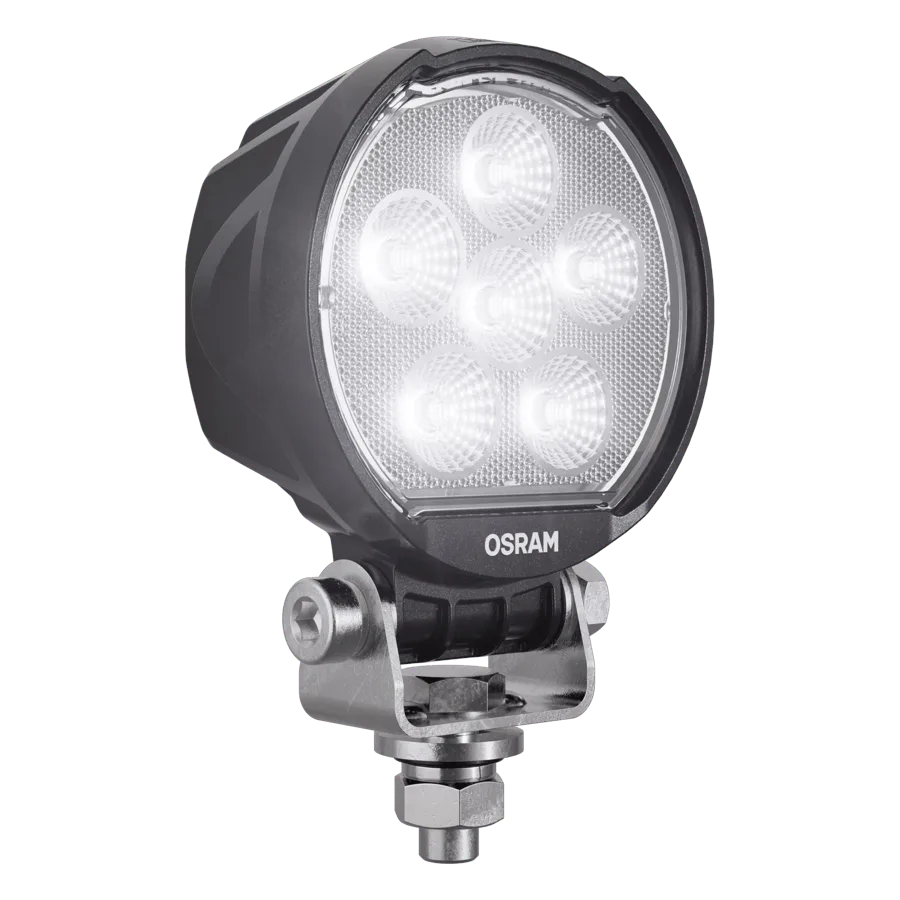

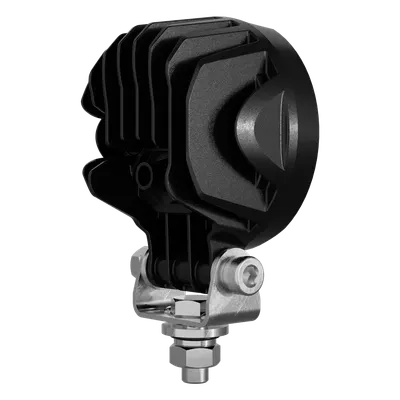

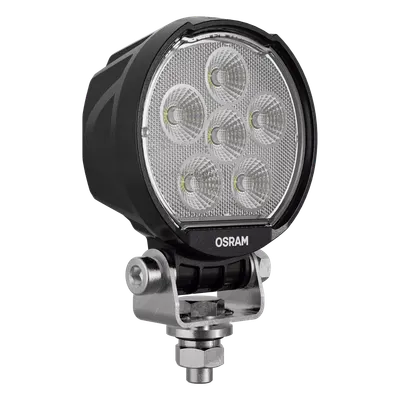

Round WL VX100-WD
Car Lighting · LED working lights







Powerful LED working lights
With the OSRAM LEDriving Round WL VX100-WD, you achieve impressive illumination on dark field and forest paths, off-road and off the beaten tracks. The working light combines affordability with exceptional performance, quality and functionality, providing users with impressive visibility at workplaces beyond roads and off-road areas. Designed to meet diverse tasks, the working light impress with a luminous flux of up to 2000lm and a wide beam pattern with wide light distribution, significantly enhancing safety at work for you and others. Even in dim light and reduced visibility, the working light with up to 6000 Kelvin can provide conditions similar to daylight. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. In addition, the work light holds an approval according to ECE R148 as a reversing light. The LEDriving Round WL VX100-WD has been tested and validated with the IP-Protection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. It is an effective and efficient addition to your vehicle and can be attached to trucks, agricultural machinery, commercial vehicles, construction vehicles and off-road vehicles 1) . OSRAM provides a 2-year guarantee 2) .1) Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed. 2)For precise conditions refer to: www.osram.com/am-guarantee
Πλεονεκτήματα Προϊόντος
- Wide Beam Pattern — For a large-area and particularly wide light distribution
- Up to 54 m long beam — See and be seen with OSRAM
- 2 in 1: Front and rear application — Perfectly matched to individual requirements and needs for versatile applications
- IP & IK protection classes — Tested and validated in a DIN-certified environmental simulation laboratory regarding extreme external influences such as water, dust, shocks, impacts, heat, cold, permanent vibrations and many more
Επιλογές Συσκευασίας & Προσφορά
Εισαγάγετε ποσότητα για τη συσκευασία που χρειάζεστε και προσθέστε την στη λίστα προσφοράς, ώστε να γνωρίζουμε ακριβώς ποια συσκευασία θέλετε.
| Συσκευασία | Περιεχόμενο | EAN | Ποσ. | Προσθήκη |
|---|---|---|---|---|
| FOLDING BOX | 1 τεμ. | 4062172355148 | ||
| SHIPPING BOX | 12 τεμ. | 4062172355155 |
Τεχνικά Δεδομένα
| Product information | |
|---|---|
| Application (Category and Product specific) | Working light application |
| General Product Information | |
| Global order reference | LEDWL106-WD |
| Electrical Data | |
| Nominal voltage | 12/24 V |
| Nominal wattage | 20 W |
| Test voltage | 13.2 V |
| Photometric Data | |
| Nominal luminous flux | 2000 lm |
| Light distance at 1lx | 54 m |
| Color temperature | 6000 K |
| Physical Attributes & Dimensions | |
| Width | 89.4 mm |
| Height | 136.4 mm |
| Product weight | 430.00 g |
| Length | 136.4 mm |
| Lifetime Data | |
| Lifespan Tc | > 5000 hr |
| Guarantee | 2 years |
| Additional product data | |
| Connector to lamp | Open wire |
| Capabilities | |
| Technology | LED (Light-emitting diode application) |
| Certificates & standards | |
| Approval marks – approval | E9 approval |
| Type of protection | IP6K8/IP6K9K |
| Standards | ECE R10, R148 |
| Logistical data | |
| Commodity code | 85122000900 |
