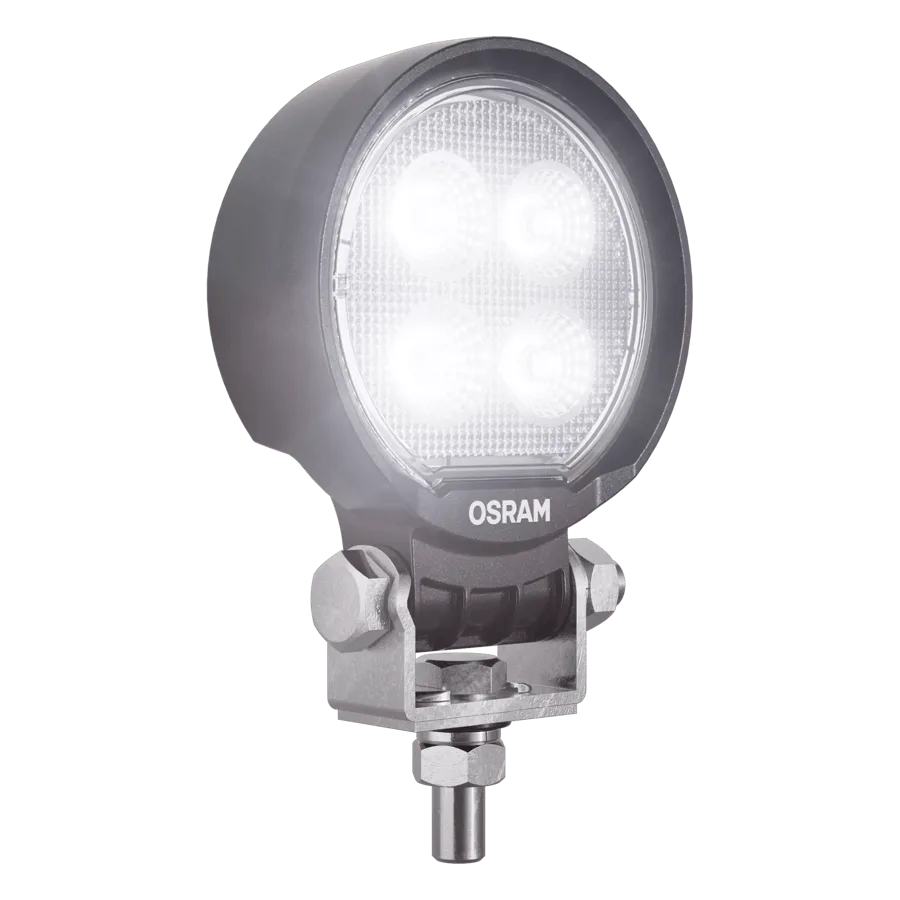

Round WL VX80-WD

Car Lighting · LED working lights

Powerful LED working lights

With the OSRAM LEDriving Round WL VX80-WD, you achieve impressive illumination on dark field and forest paths, off-road and off the beaten tracks. The working light combines affordability with exceptional performance, quality and functionality, providing users with impressive visibility at workplaces beyond roads and off-road areas. Designed to meet diverse tasks, the working light impress with a luminous flux of up to 1350lm and a wide beam pattern with wide light distribution, significantly enhancing safety at work for you and others. Even in dim light and reduced visibility, the working light with up to 6000 Kelvin can provide conditions similar to daylight. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. In addition, the work light holds an approval according to ECE R148 as a reversing light. The LEDriving Round WL VX80-WD has been tested and validated with the IP-Protection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. It is an effective and efficient addition to your vehicle and can be attached to trucks, agricultural machinery, commercial vehicles, construction vehicles and off-road vehicles 1) . OSRAM provides a 2-year guarantee 2) .1) Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed. 2)For precise conditions refer to: www.osram.com/am-guarantee

Πλεονεκτήματα Προϊόντος

  • Wide Beam Pattern — For a large-area and particularly wide light distribution
  • Up to 43 m long beam — See and be seen with OSRAM
  • 2 in 1: Front and rear application — Perfectly matched to individual requirements and needs for versatile applications
  • IP & IK protection classes — Tested and validated in a DIN-certified environmental simulation laboratory regarding extreme external influences such as water, dust, shocks, impacts, heat, cold, permanent vibrations and many more

Επιλογές Συσκευασίας & Προσφορά

Εισαγάγετε ποσότητα για τη συσκευασία που χρειάζεστε και προσθέστε την στη λίστα προσφοράς, ώστε να γνωρίζουμε ακριβώς ποια συσκευασία θέλετε.

ΣυσκευασίαΠεριεχόμενοEANΠοσ.Προσθήκη
FOLDING BOX1 τεμ.4062172355100
SHIPPING BOX20 τεμ.4062172355117

Τεχνικά Δεδομένα

Product information
Application (Category and Product specific) Working light application
General Product Information
Global order reference LEDWL104-WD
Electrical Data
Nominal voltage 12/24 V
Nominal wattage 12 W
Test voltage 13.2 V
Photometric Data
Nominal luminous flux 1350 lm
Light distance at 1lx 43 m
Color temperature 6000 K
Physical Attributes & Dimensions
Width 75.0 mm
Height 122.7 mm
Product weight 244.00 g
Length 112.4 mm
Lifetime Data
Lifespan Tc > 5000 hr
Guarantee 2 years
Additional product data
Connector to lamp Open wire
Capabilities
Technology LED (Light-emitting diode application)
Certificates & standards
Approval marks – approval E9 approval
Type of protection IP6K8/IP6K9K
Standards ECE R10, R148
Logistical data
Commodity code 85122000900

Φύλλο Δεδομένων (PDF)
