Precision Round Steel Tubes
Precision Round Steel Tubes
Precision Round Steel Tubes

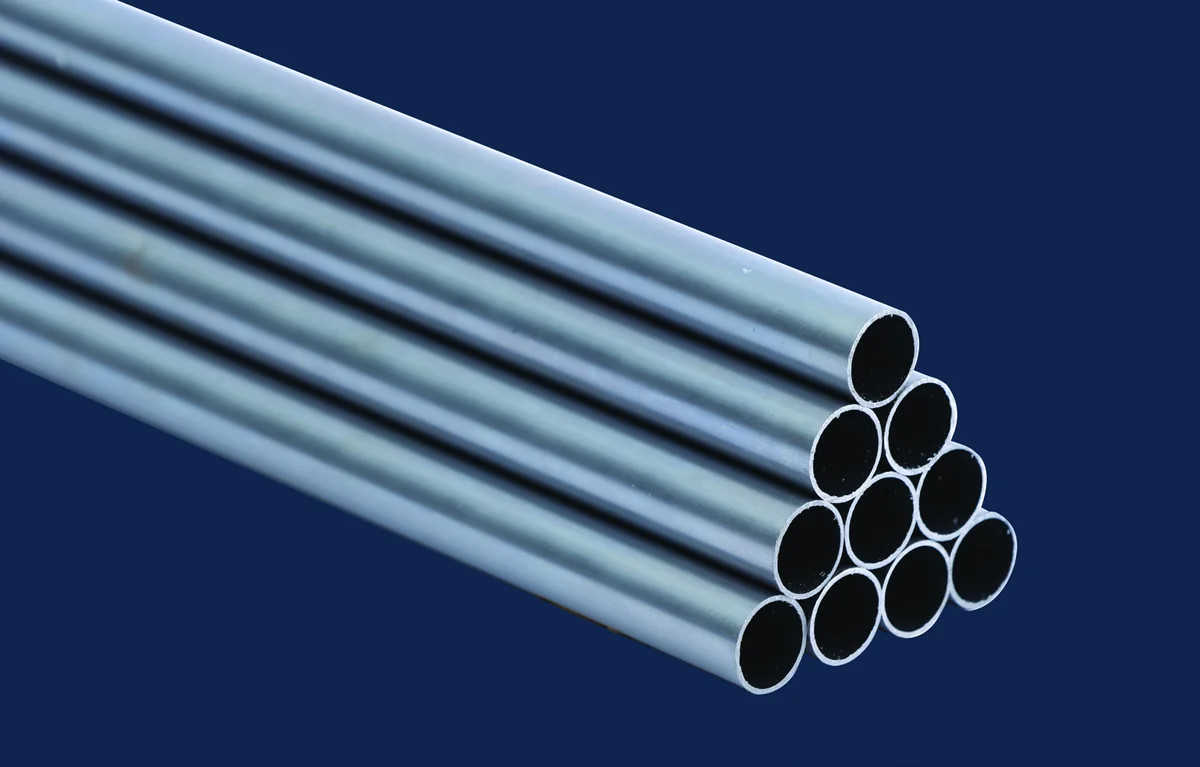

Cold-sized welded round steel tubes for precision applications. Their tight dimensional tolerance, smooth inner/outer surface and good machinability make them suitable for the automotive & supplier industry, white goods, furniture and machine building.

Produced in outside diameters from Ø8 mm up to Ø191 mm and wall thicknesses of 0.65–6 mm. Standard length is 6000 mm.

TS EN 10305-3DIN 2394DIN 2395

Βασικά Χαρακτηριστικά

  • To TS EN 10305-3 and DIN 2394/2395
  • Ø8–Ø191 mm outside diameter
  • 0.65–6 mm wall thickness
  • Tight tolerance · 6000 mm length

Επιλέξτε Διάσταση και Πάχος Τοιχώματος

Επιλέξτε εξωτερική διάσταση και πάχος τοιχώματος· υπολογίζονται το βάρος ανά μέτρο (kg/m) και το βάρος ενός τεμαχίου 6 m. Δώστε ποσότητα και προσθέστε το στη λίστα προσφοράς σας.

Πίνακας Βαρών (kg/m)

Οι τιμές είναι βάρος ανά μέτρο (kg/m). Το τυπικό μήκος είναι 6000 mm· άλλα μήκη κόβονται κατά παραγγελία.

Outside diameter (mm) 0,650,70,80,91,01,21,41,51,82,02,53,03,54,04,34,55,05,56,0
Ø8 0,120,130,140,160,170,2
Ø9 0,130,140,160,180,20,23
Ø10 0,150,160,180,20,220,260,31
Ø12 0,180,20,220,250,270,320,390,49
Ø13 0,20,210,240,270,30,350,40,430,54
Ø15 0,230,250,280,310,350,410,470,50,640,770,89
Ø16 0,250,260,30,340,370,440,50,540,690,830,96
Ø17 0,260,280,320,360,390,470,540,570,670,740,891,04
Ø18 0,280,30,340,380,420,50,570,610,720,790,961,11
Ø19 0,290,320,360,40,440,530,610,650,760,841,021,18
Ø20 0,310,330,380,420,470,560,640,680,810,891,081,26
Ø21 0,330,350,40,450,490,590,680,720,850,941,141,33
Ø22 0,340,370,420,470,520,620,710,760,90,991,21,411,78
Ø24 0,460,510,570,670,780,830,981,08
Ø25 0,390,420,480,530,590,70,810,871,031,131,391,632,072,19
Ø25.4 0,40,430,490,540,60,720,881,151,411,662,112,24
Ø26.9 0,420,450,510,580,640,760,880,941,111,231,51,772,262,4
Ø28 0,440,470,540,60,670,790,920,981,161,281,571,852,372,51
Ø28.6 0,450,480,550,610,680,8111,311,611,892,432,58
Ø30 0,470,510,580,650,720,850,991,051,251,381,722,562,73
Ø32 0,540,620,690,760,911,061,131,341,481,822,152,762,94
Ø33.7 0,570,650,730,810,961,111,191,421,561,922,27
Ø35 0,590,670,760,8411,161,241,471,6322,373,063,26
Ø38 0,640,730,820,911,091,261,351,611,782,192,592,983,353,57
Ø40 0,680,770,870,961,151,331,421,691,872,312,743,153,55
Ø42 0,810,911,011,211,41,51,781,972,442,893,323,75
Ø42.4 0,820,921,021,221,411,511,81,992,462,913,363,79
Ø45 0,870,981,091,31,51,611,922,122,623,113,584,04
Ø48 1,051,161,381,722,272,813,33
Ø48.3 1,051,171,391,621,732,062,282,823,353,864,374,865,34
Ø50 1,091,211,441,681,792,142,372,933,484,014,545,055,55
Ø51 1,111,231,471,711,832,182,422,993,554,14,635,165,67
Ø54 1,181,311,561,942,563,173,77
Ø55 1,21,331,591,982,613,243,85
Ø57 1,251,381,651,922,052,452,713,363,994,625,235,826,41
Ø60 1,311,451,742,162,863,544,22
Ø60.3 1,321,461,752,032,182,62,883,564,244,95,556,196,82
Ø63 1,531,832,273,013,734,44
Ø63.5 1,842,142,292,743,033,764,475,185,876,547,21
Ø70 2,042,372,533,033,354,164,965,746,517,278,01
Ø76 2,212,763,654,535,4
Ø76.1 2,222,582,763,33,654,545,416,267,117,948,76
Ø80 2,332,93,854,785,7
Ø88.9 3,023,233,864,285,326,357,378,379,3610,3411,3112,26
Ø100 4,364,836,017,178,339,4710,5911,71
Ø101.6 4,434,916,117,298,469,6210,7711,9113,0314,14
Ø108 4,715,236,57,769,0210,2511,4812,6913,915,09
Ø114.3 4,995,546,898,239,5610,8812,1813,4714,7516,02
Ø127 7,689,1710,6512,1313,5915,0416,4717,9
Ø139.7 8,4610,1111,7513,381516,618,1919,77
Ø150 9,0910,8712,6514,416,1417,8719,5921,3
Ø159 11,5413,4215,2817,1418,9820,8122,63
Ø165 11,9813,9415,8717,819,7221,6223,52
Ø191 13,916,1818,4420,6922,9225,1527,36
