Lintel
Reinforced Products

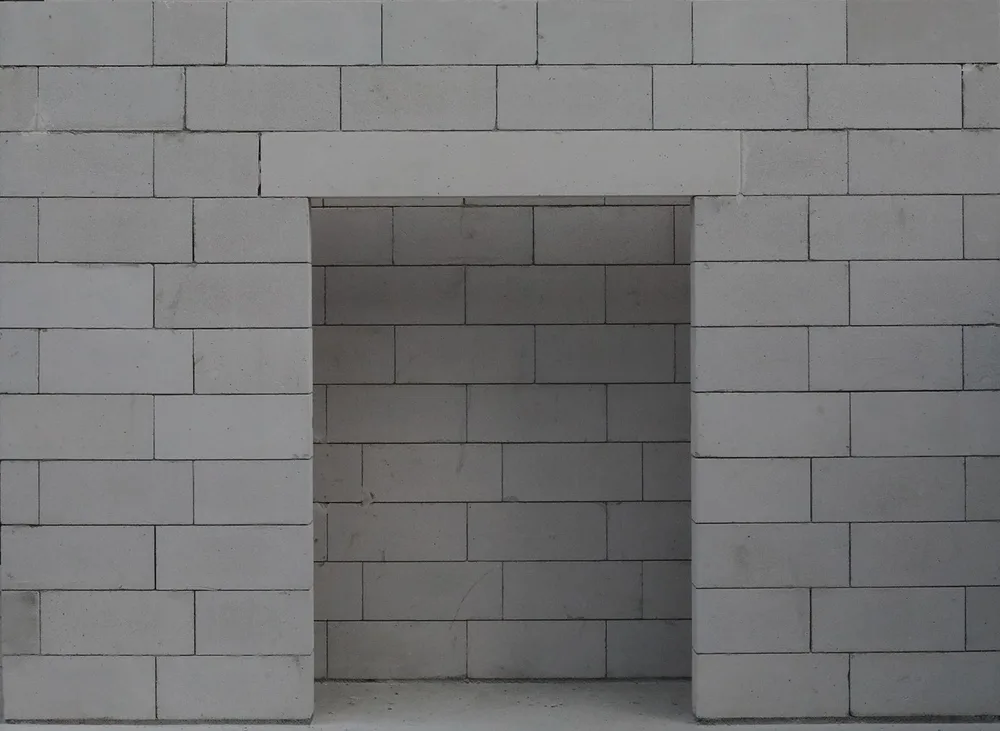

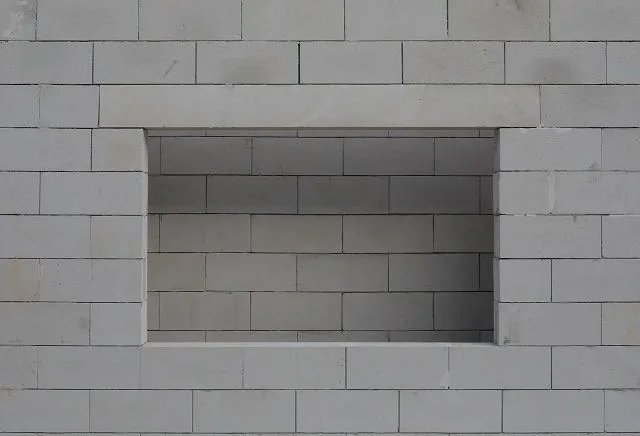

Lintels are reinforced AAC elements used to span door and window openings. Produced as load-bearing or non-load-bearing in a range of sizes to suit the project, they reduce thermal bridging and condensation, are compatible with different wall types and install easily. Per the 2018 Turkish Building Earthquake Code, the minimum bearing/overlap is 20 cm.
Key features
- For door/window openings
- Reduces thermal bridging & condensation
- Project-specific sizes
- Easy installation
Technical specifications
| Property | G3/500 | G4/600 | Unit |
|---|---|---|---|
| Dry bulk density | 500 | 600 | kg/m³ |
| Compressive strength | 3,5 | 5 | N/mm² |
| Thermal conductivity (λh) | 0,13 | 0,16 | W/mK |
| Fire class | A1 (non-combustible) |
| Property | Value | Unit |
|---|---|---|
| Clear span | 100, 120, 140, 160, 200, 240 | cm |
| Bearing / overlap | 20 | cm |
| Length | 140, 160, 180, 200, 240, 280 | cm |
| Height | 19 – 20 – 25 | cm |
| Thickness | 9 – 10 – 15 – 20 | cm |
