MTS 12000 Flanged Series Mesh 10 cm
Floor Drains · Flanged Series Drain Systems
Flanged (skirted) floor drains are made with a wide waterproofing skirt that bonds to the tanking layer and stops leakage around the drain. This series includes 7 models, available with side and bottom outlet and 10 cm size.
Key features
- Stainless-steel body
- side and bottom outlet options
- Odour and vermin barrier
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 12000 | Mesh Stainless Grated 10 cm Side Outlet 32 mm | ||

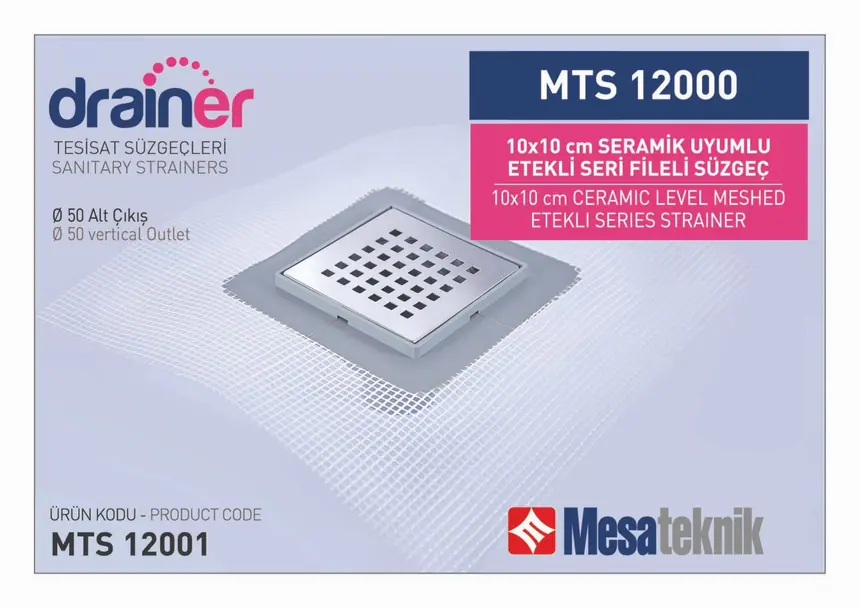

| MTS 12001 | Mesh Stainless Grated 10 cm Bottom Outlet 50 mm | ||

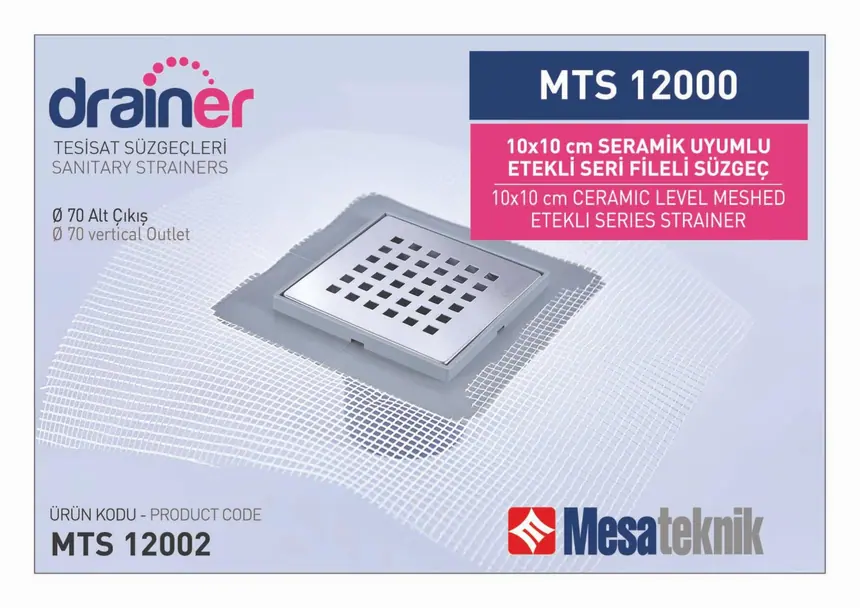

| MTS 12002 | Mesh Stainless Grated 10 cm Bottom Outlet 70 mm | ||

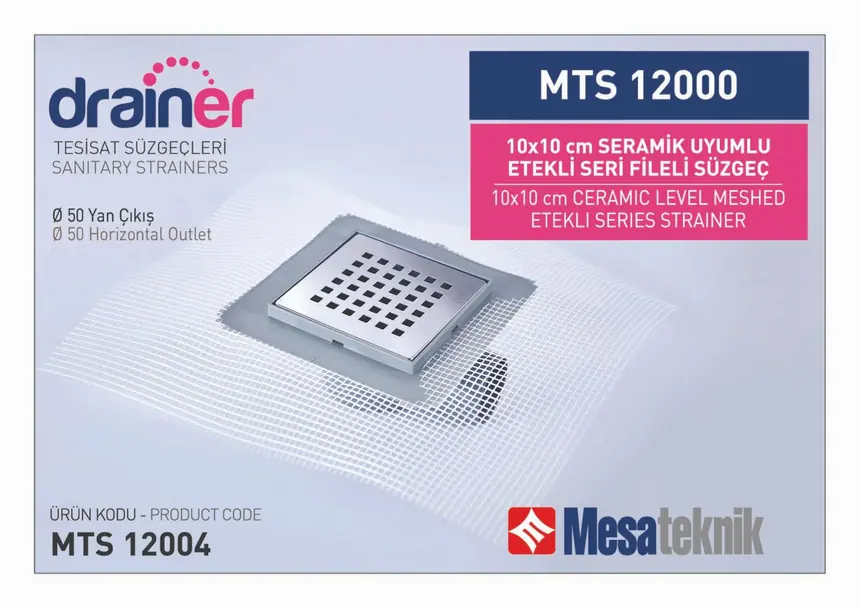

| MTS 12004 | Mesh Stainless Grated 10 cm Side Outlet 50 mm | ||

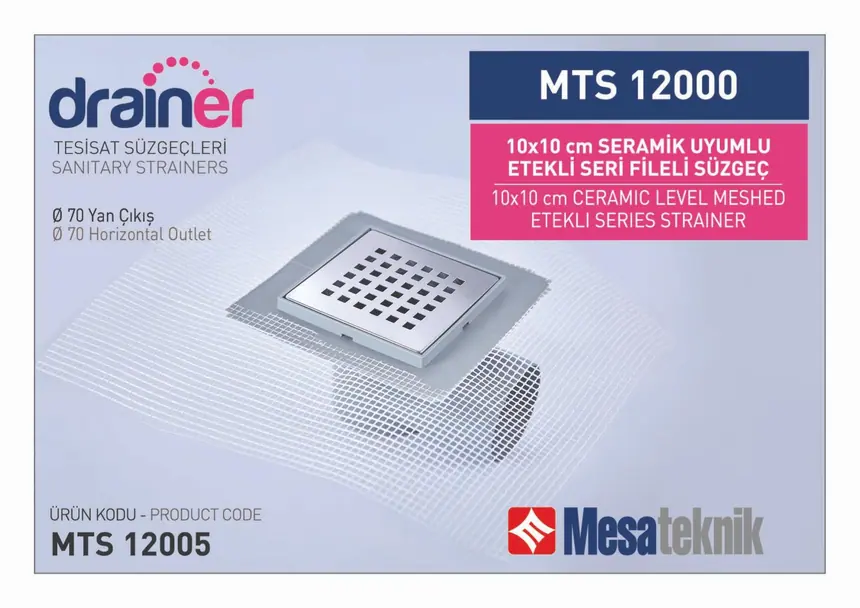

| MTS 12005 | Mesh Stainless Grated 10 cm Side Outlet 70 mm | ||

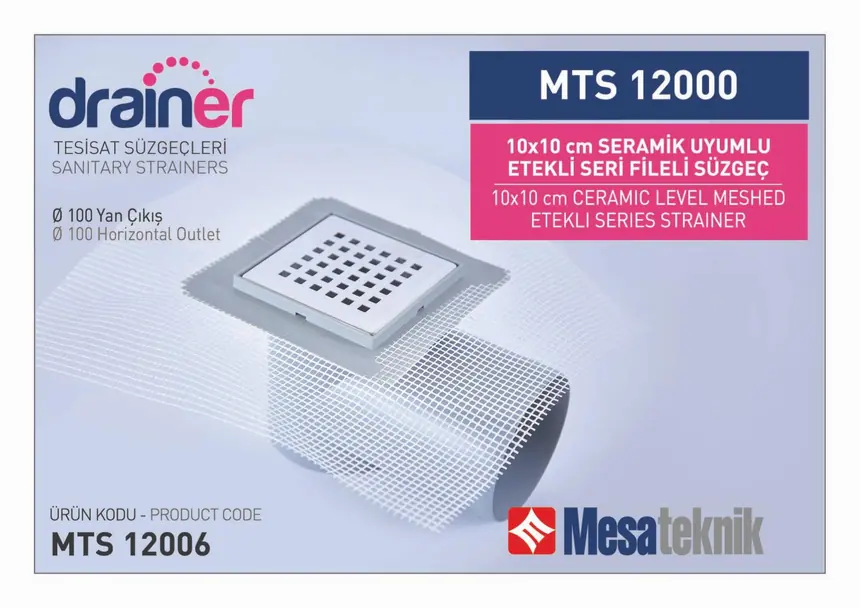

| MTS 12006 | Mesh Stainless Grated 10 cm Side Outlet 100 mm | ||

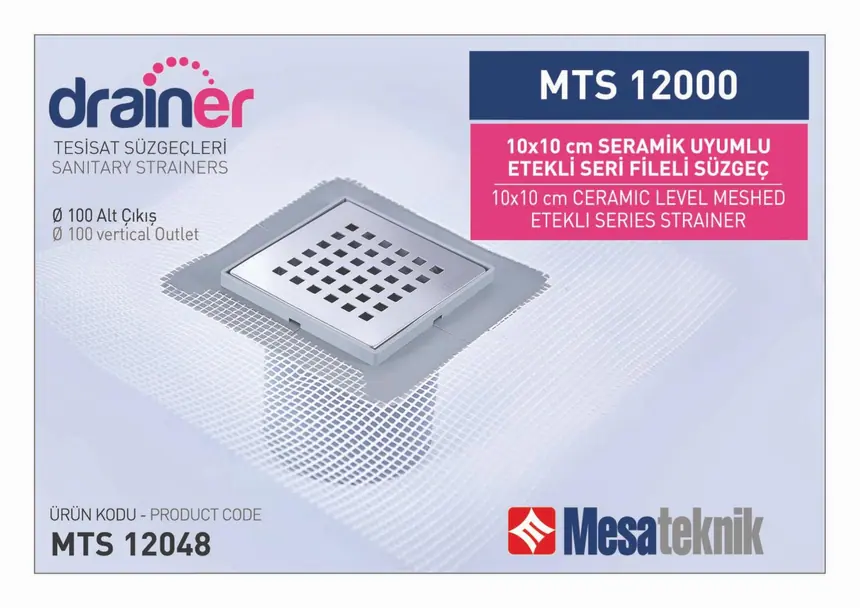

| MTS 12048 | Mesh Stainless Grated 10 cm Bottom Outlet 100 mm |
Technical specifications
| Body | Stainless-steel |
|---|---|
| Outlet | Side and bottom outlet |
| Models | 7 |
