MTS 5000 10 cm Wall-Edge Plumbing Drain Systems
Floor Drains · Wall-Edge Series Drain Systems
Wall-edge floor drains are shaped to sit against the wall, collecting water at the skirting line and leaving a wide, unobstructed floor area. This series includes 21 models, available with side and bottom outlet, 32/50/70/100 mm outlet diameters and 3–15 cm sizes.
Key features
- side and bottom outlet options
- Odour and vermin barrier
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 5000-3 | Side-Outlet Systems 32 mm Dia. Height 3 cm Grate 10 cm | ||

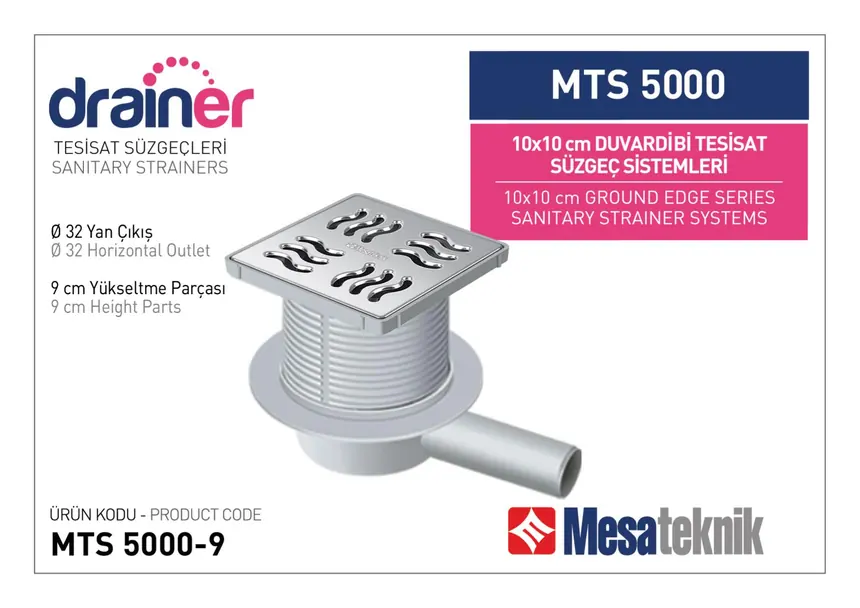

| MTS 5000-9 | Side-Outlet Systems 32 mm Dia. Height 9 cm Grate 10 cm | ||

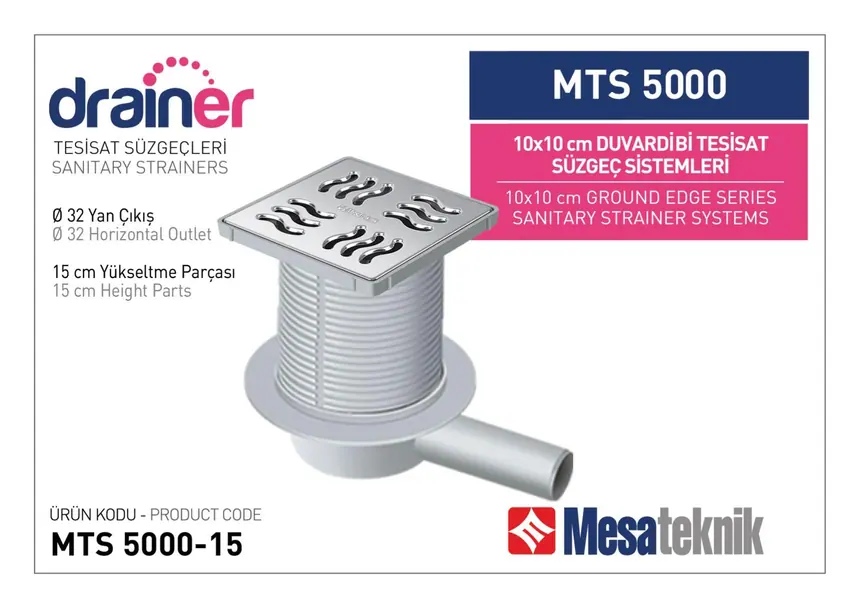

| MTS 5000-15 | Side-Outlet Systems 32 mm Dia. Height 15 cm Grate 10 cm | ||

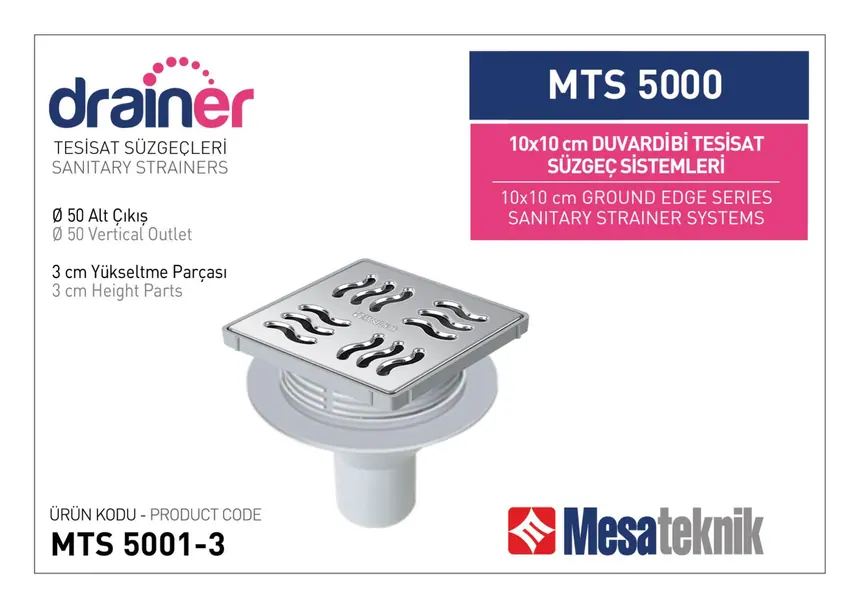

| MTS 5001-3 | Bottom-Outlet Systems 50 mm Dia. Height 3 cm Grate 10 cm | ||
| MTS 5001-9 | Bottom-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm | ||

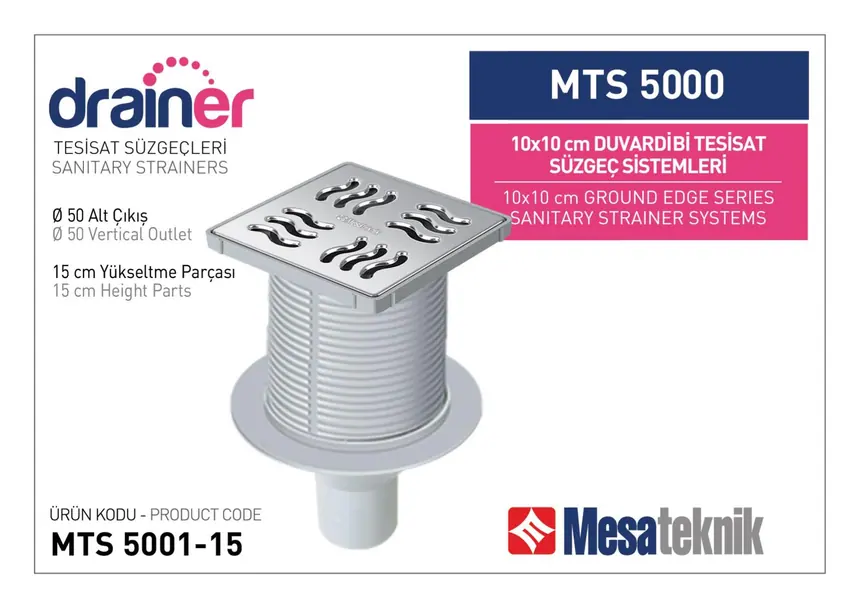

| MTS 5001-15 | Bottom-Outlet Systems 50 mm Dia. Height 15 cm Grate 10 cm | ||

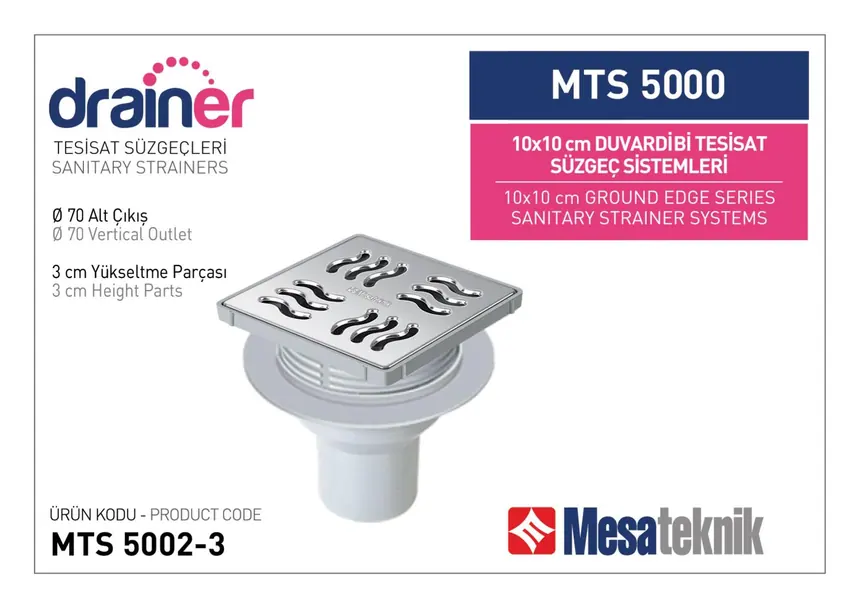

| MTS 5002-3 | Bottom-Outlet Systems 70 mm Dia. Height 3 cm Grate 10 cm | ||

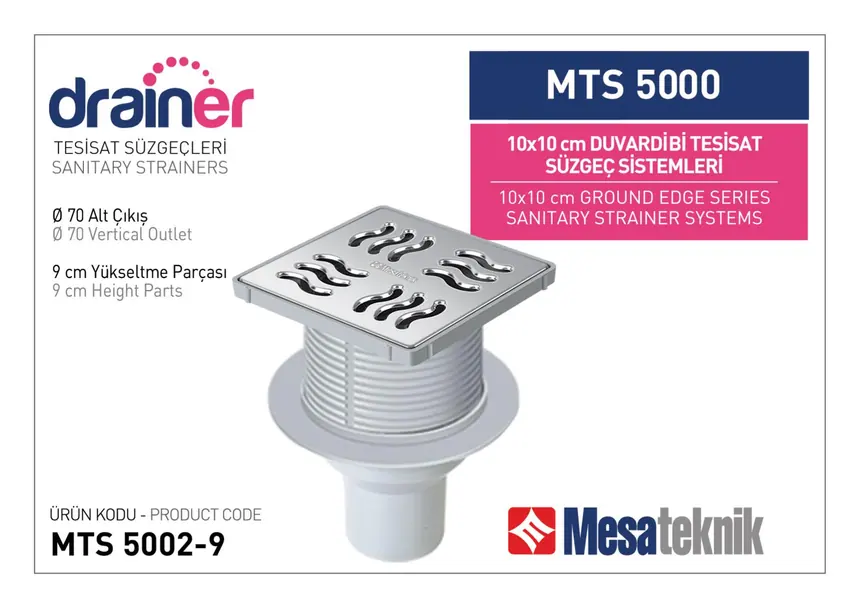

| MTS 5002-9 | Bottom-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm | ||
| MTS 5002-15 | Bottom-Outlet Systems 70 mm Dia. Height 15 cm Grate 10 cm | ||

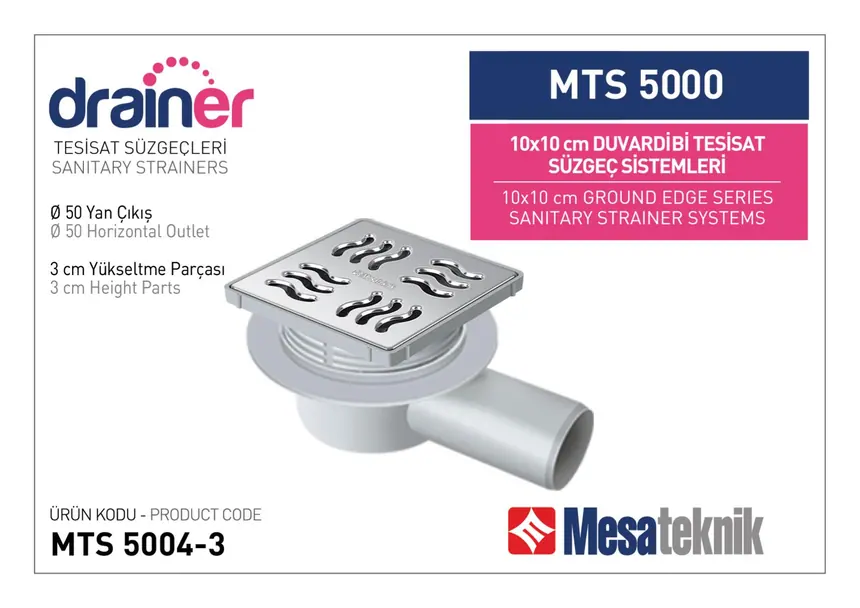

| MTS 5004-3 | Side-Outlet Systems 50 mm Dia. Height 3 cm Grate 10 cm | ||

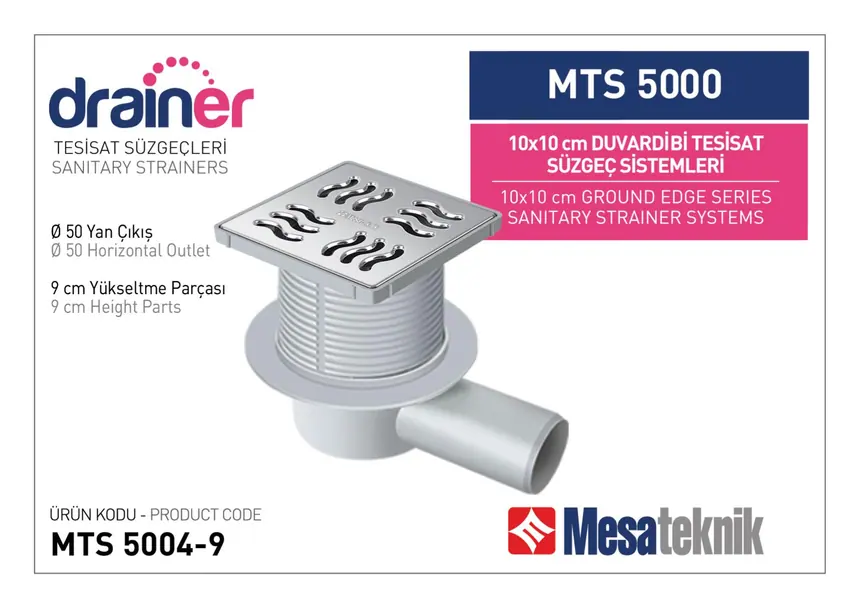

| MTS 5004-9 | Side-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm | ||

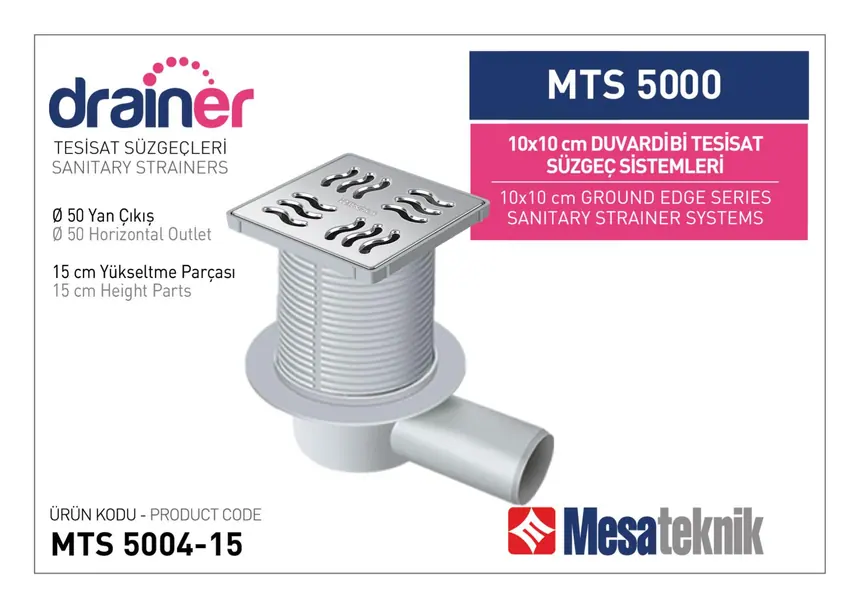

| MTS 5004-15 | Side-Outlet Systems 50 mm Dia. Height 15 cm Grate 10 cm | ||

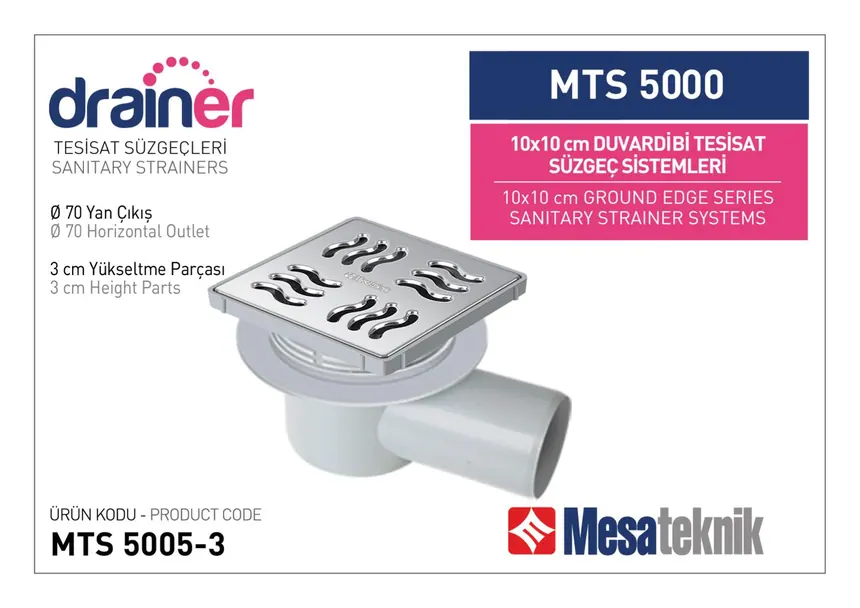

 | MTS 5005-3 | Side-Outlet Systems 70 mm Dia. Height 3 cm Grate 10 cm | ||

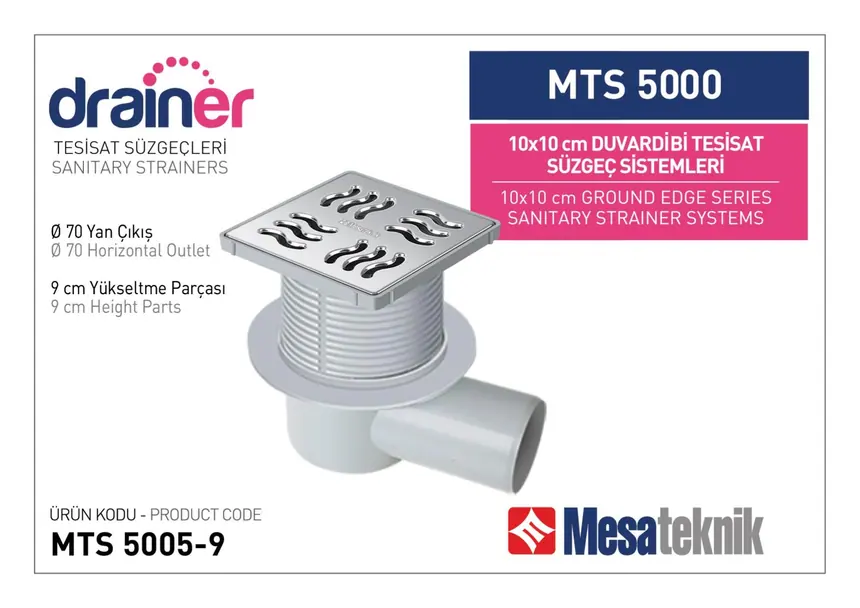

 | MTS 5005-9 | Side-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm | ||

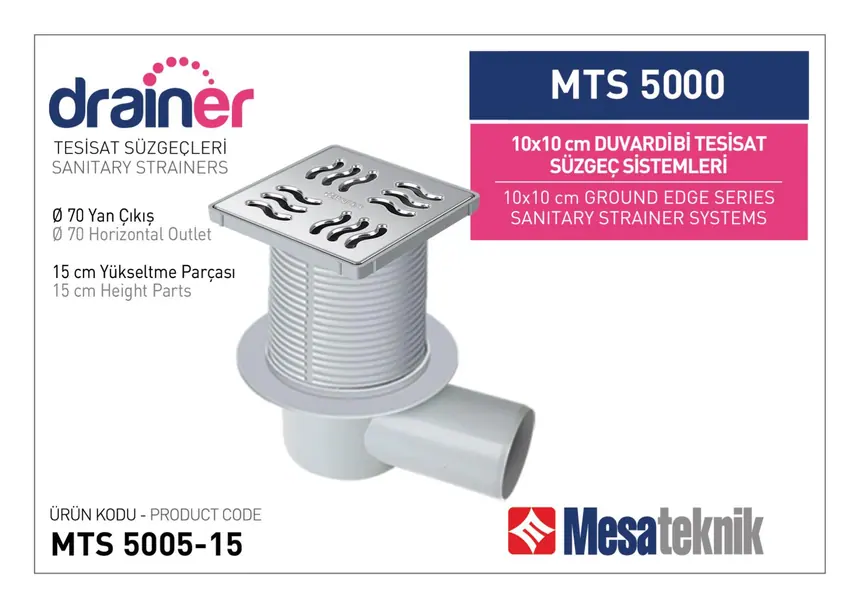

 | MTS 5005-15 | Side-Outlet Systems 70 mm Dia. Height 15 cm Grate 10 cm | ||

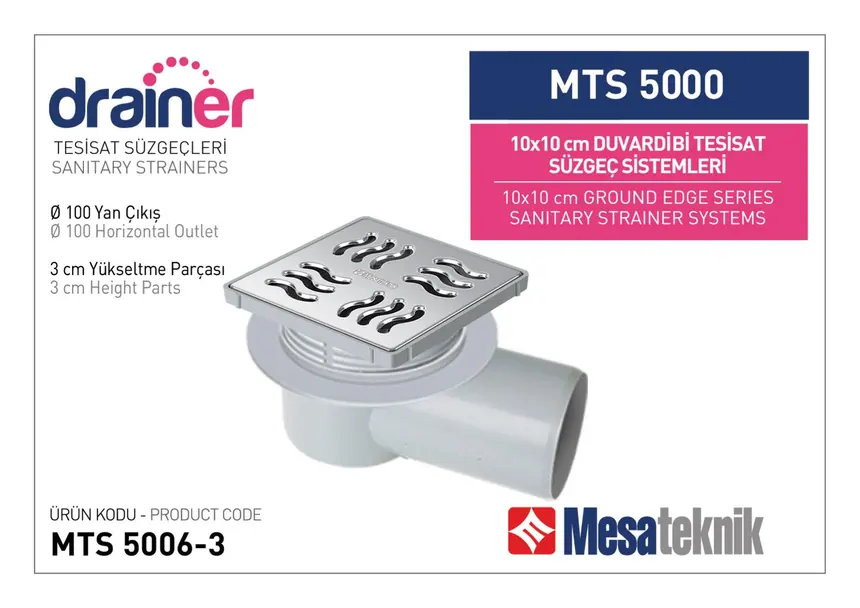

 | MTS 5006-3 | Side-Outlet Systems 100 mm Dia. Height 3 cm Grate 10 cm | ||

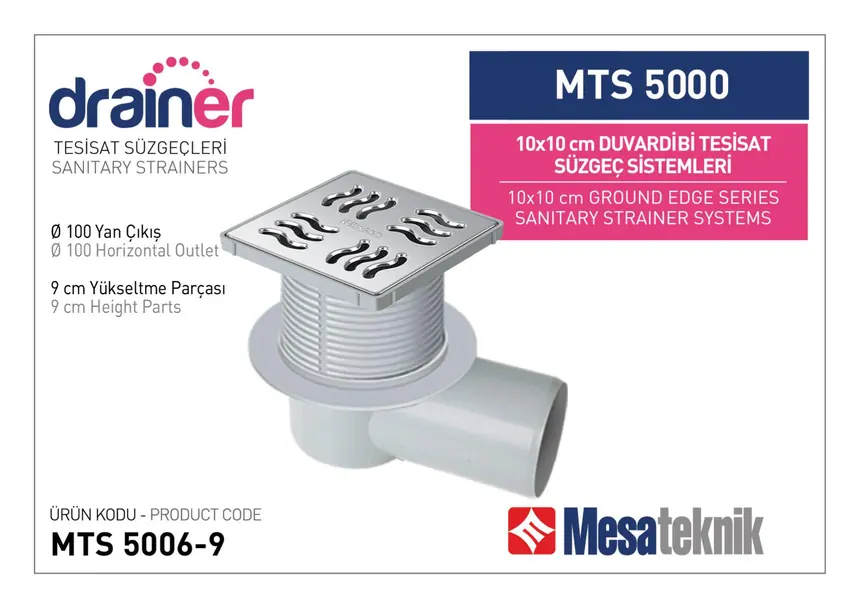

 | MTS 5006-9 | Side-Outlet Systems 100 mm Dia. Height 9 cm Grate 10 cm | ||

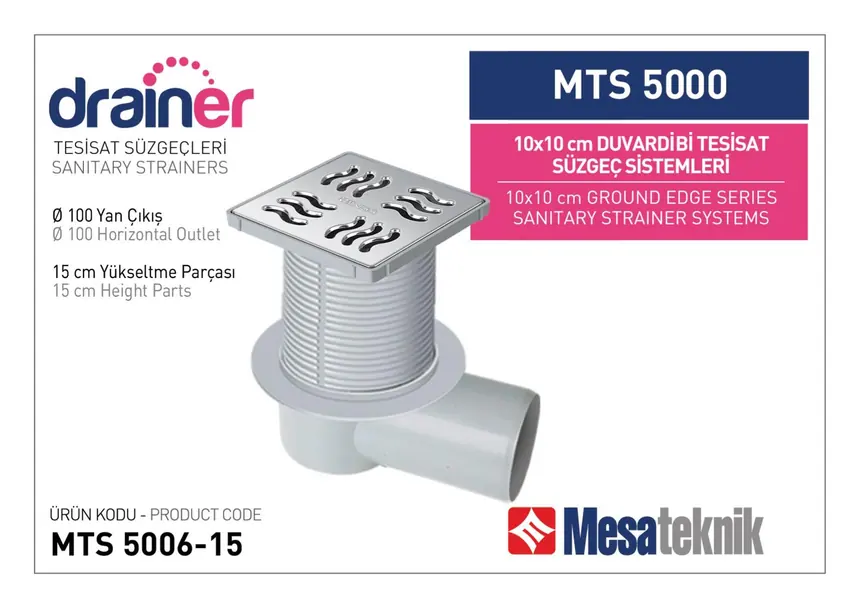

 | MTS 5006-15 | Side-Outlet Systems 100 mm Dia. Height 15 cm Grate 10 cm | ||

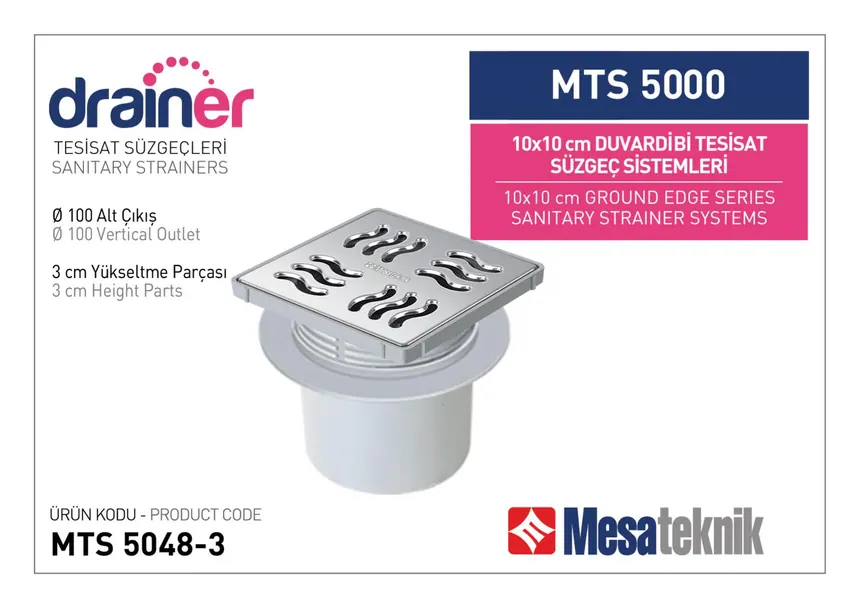

 | MTS 5048-3 | Bottom-Outlet Systems 100 mm Dia. Height 3 cm Grate 10 cm | ||

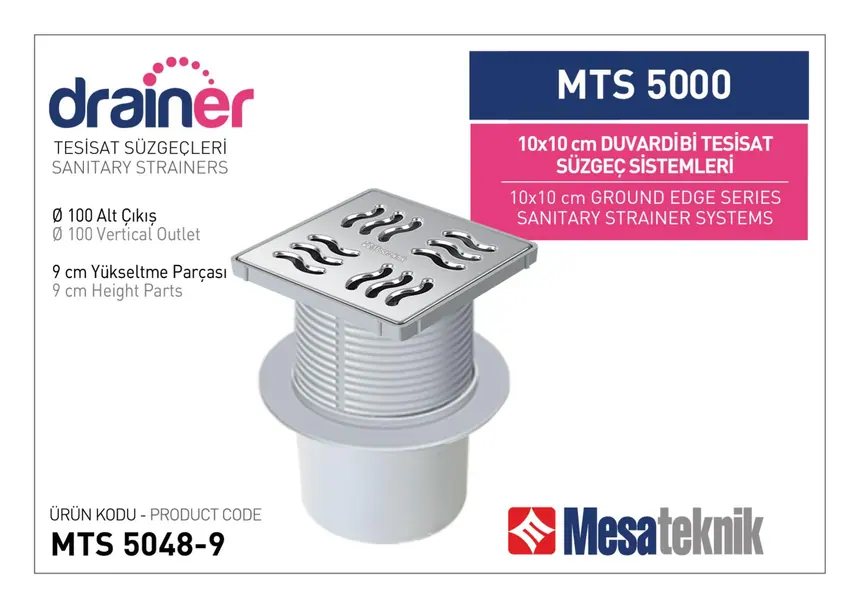

 | MTS 5048-9 | Bottom-Outlet Systems 100 mm Dia. Height 9 cm Grate 10 cm | ||
 | MTS 5048-15 | Bottom-Outlet Systems 100 mm Dia. Height 15 cm Grate 10 cm |
Technical specifications
| Outlet | Side and bottom outlet |
|---|---|
| Outlet Dia. | 32 / 50 / 70 / 100 mm |
| Size Range | 3–15 cm |
| Models | 21 |
