MTS 4500 Double-Clamp Drain Systems 10x10 cm
Waterproofing Drains · Double-Clamp Drain Systems
Double-clamp waterproofing drains lock the membrane to the drain with a two-stage compression flange, forming a secure, watertight connection on terraces and roofs. This series includes 6 models, available with side and bottom outlet, 32/50/70/100 mm outlet diameters and 9–10 cm sizes.
Key features
- side and bottom outlet options
- Watertight connection to the membrane
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 4500 | Side-Outlet Systems 32 mm Dia. Height 9 cm Grate 10 cm Two-Stage | ||

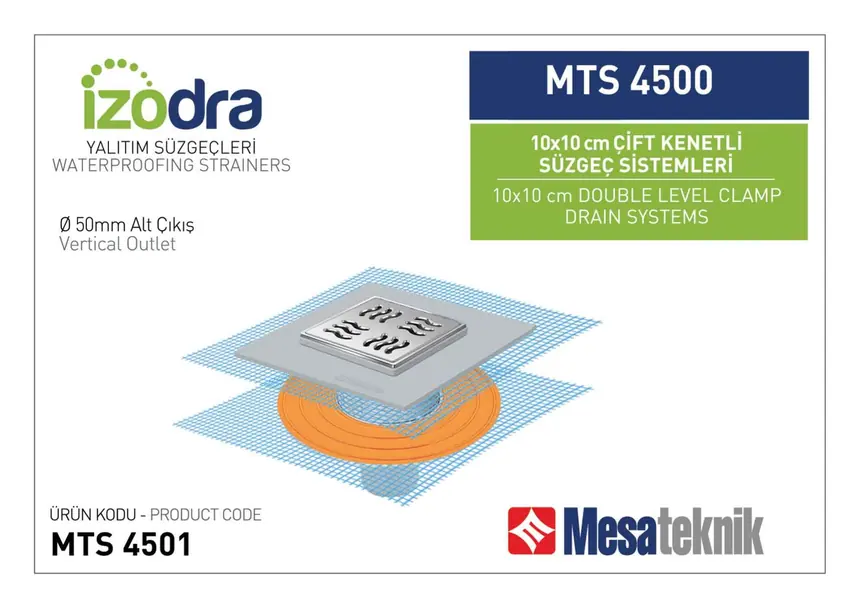

| MTS 4501 | Bottom-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm Two-Stage | ||

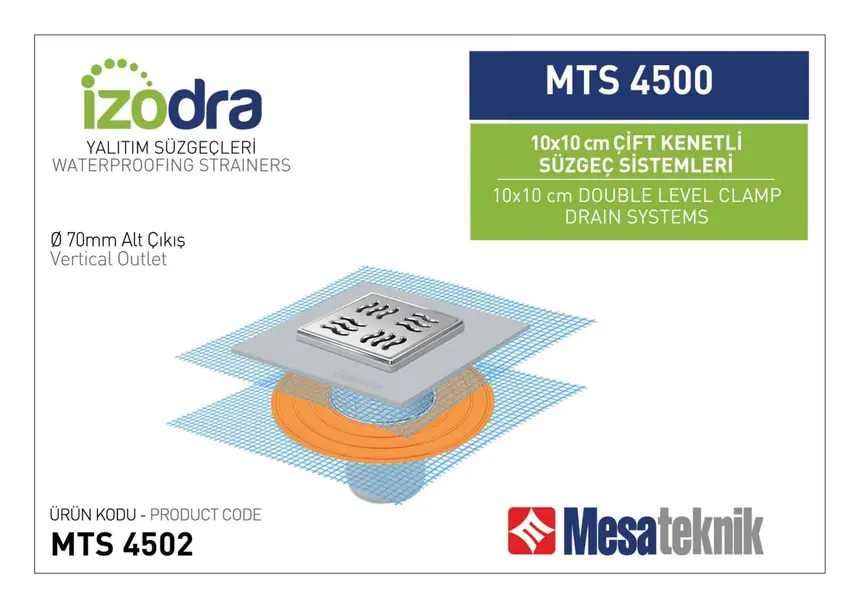

| MTS 4502 | Bottom-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm Two-Stage | ||

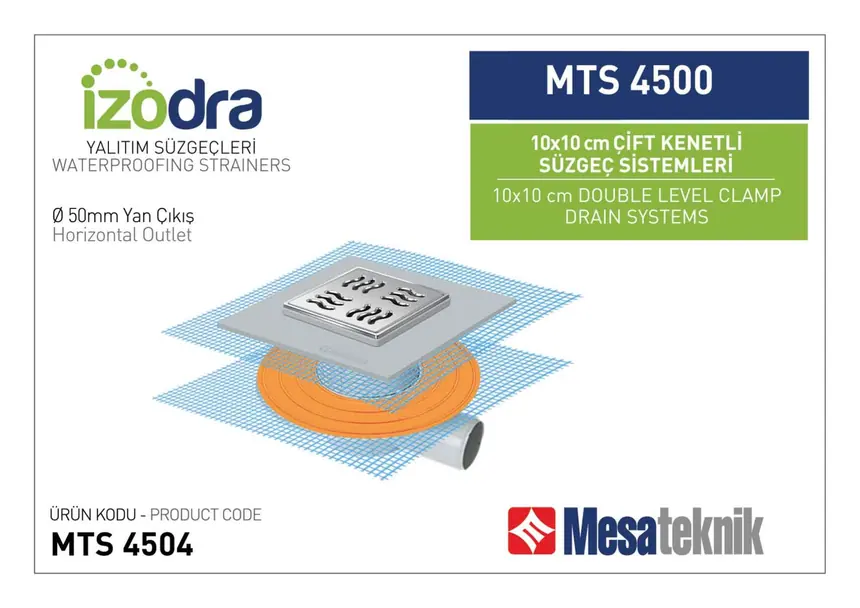

| MTS 4504 | Side-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm Two-Stage | ||

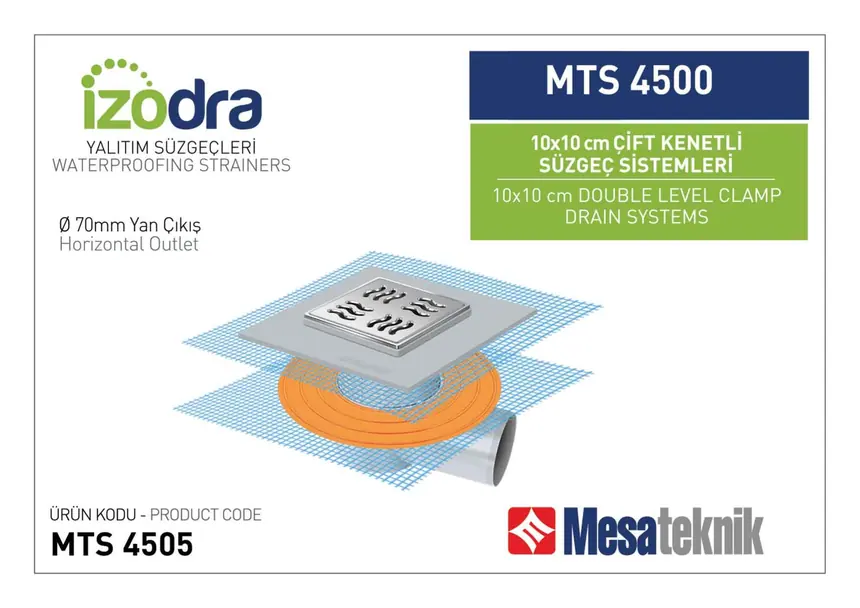

| MTS 4505 | Side-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm Two-Stage | ||

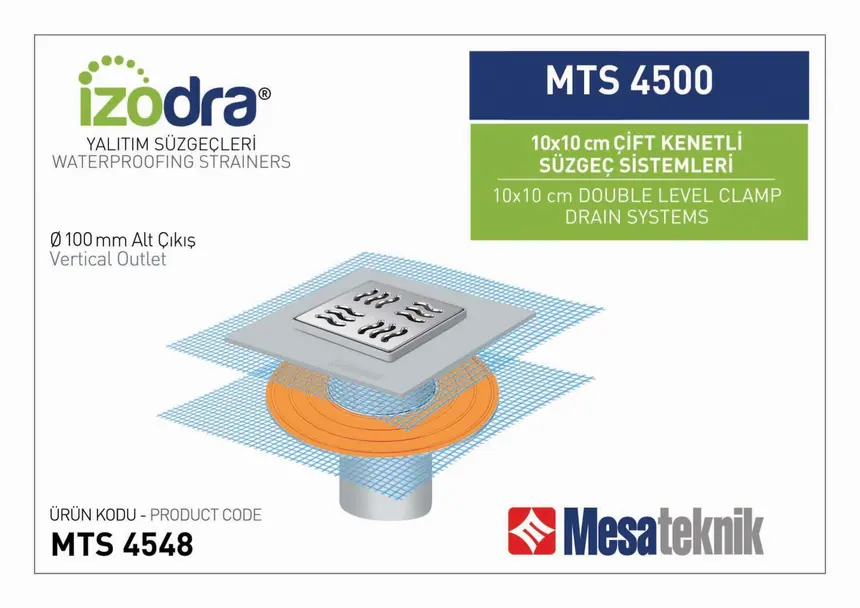

| MTS 4548 | Bottom-Outlet Systems 100 mm Dia. Height 9 cm Grate 10 cm Two-Stage |
Technical specifications
| Outlet | Side and bottom outlet |
|---|---|
| Outlet Dia. | 32 / 50 / 70 / 100 mm |
| Size Range | 9–10 cm |
| Models | 6 |
