MTS 7100F Mesh Plastic Flange Mounted Drain Systems 15 cm
Waterproofing Drains · Mesh-Mounted Drain Systems
Mesh-mounted drains are applied with a separate reinforcement mesh that is embedded in the waterproofing mortar for a strong, crack-free transition to the floor. This series includes 21 models, available with side and bottom outlet, 32/50/70/100 mm outlet diameters and 3–15 cm sizes.
Key features
- Plastic body
- side and bottom outlet options
- Watertight connection to the membrane
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 7100F-3 | Side-Outlet Systems 32 mm Dia. Height 3 cm Grate 15 cm | ||

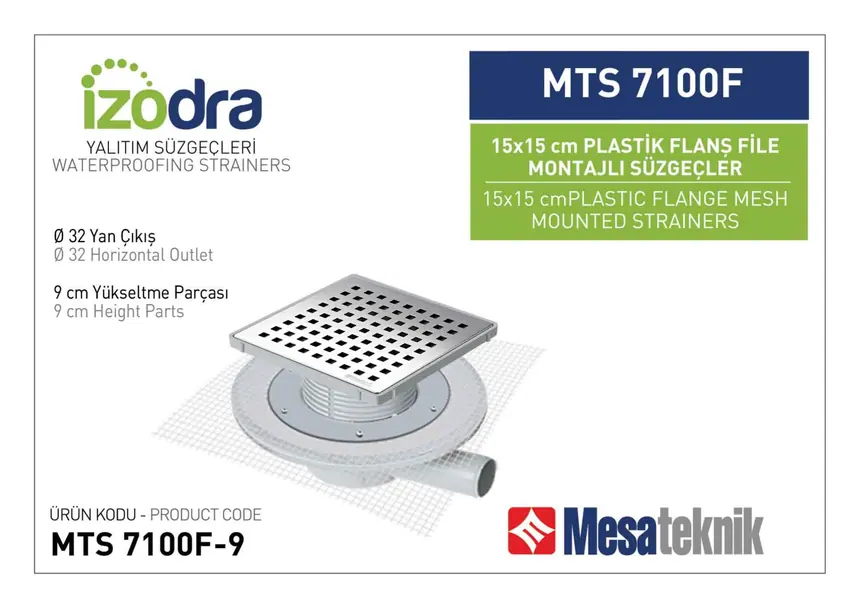

| MTS 7100F-9 | Side-Outlet Systems 32 mm Dia. Height 9 cm Grate 15 cm | ||

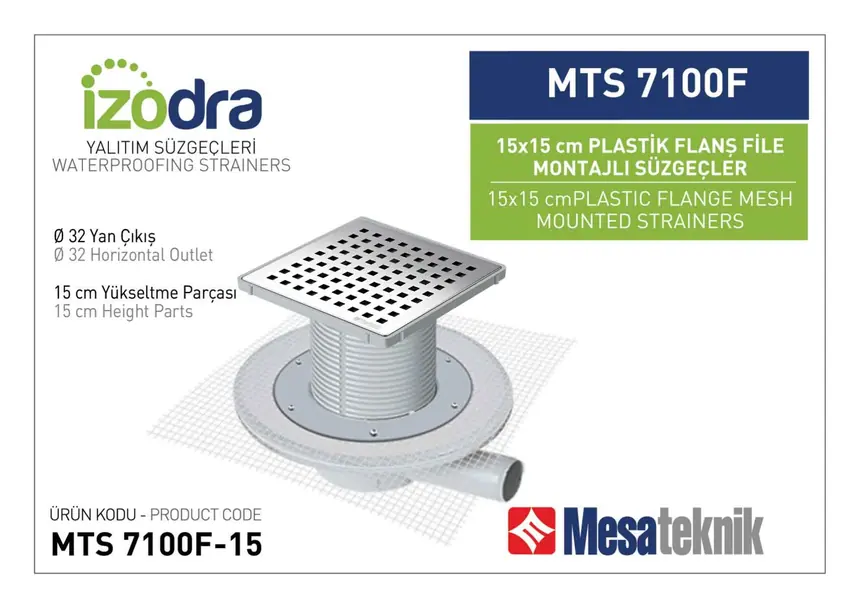

| MTS 7100F-15 | Side-Outlet Systems 32 mm Dia. Height 15 cm Grate 15 cm | ||

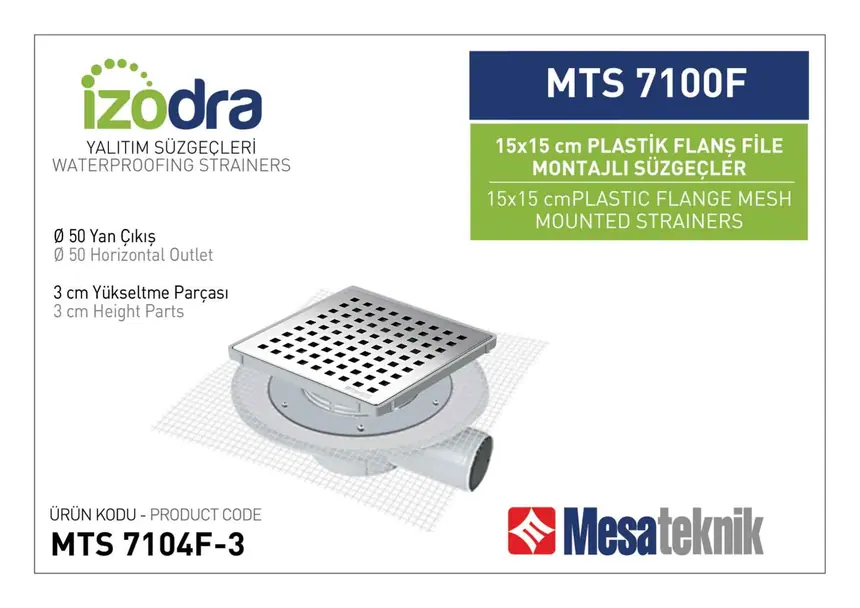

| MTS 7104F-3 | Side-Outlet Systems 50 mm Dia. Height 3 cm Grate 15 cm | ||

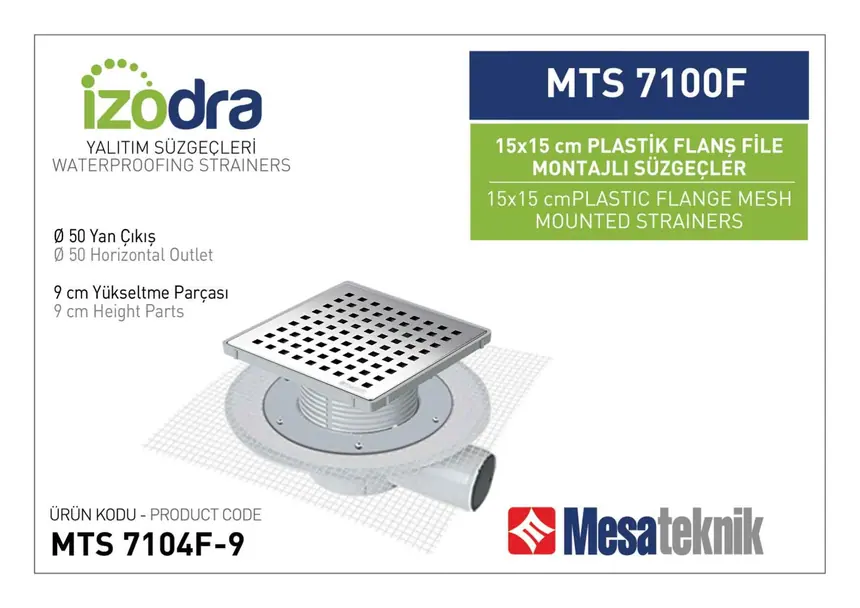

| MTS 7104F-9 | Side-Outlet Systems 50 mm Dia. Height 9 cm Grate 15 cm | ||
| MTS 7104-15 | Side-Outlet Systems 50 mm Dia. Height 15 cm Grate 15 cm | ||

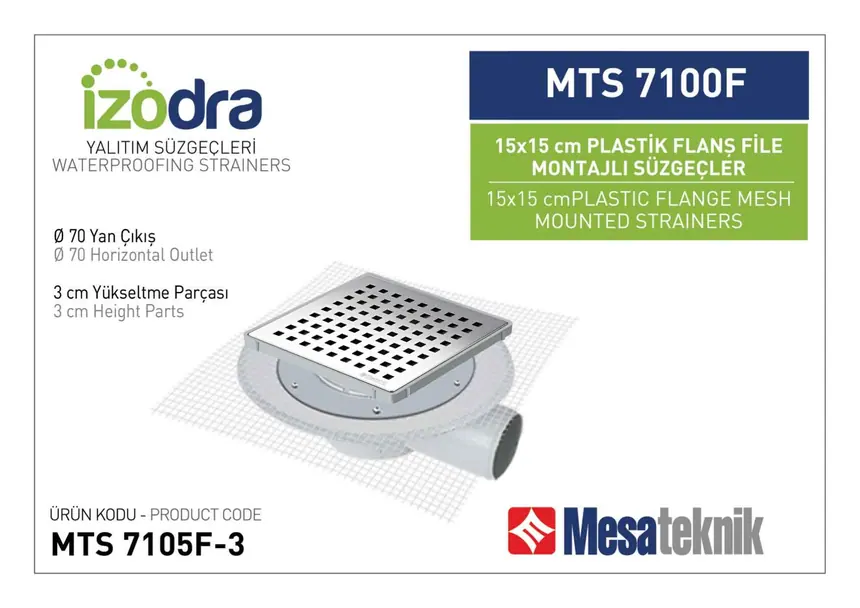

| MTS 7105F-3 | Side-Outlet Systems 70 mm Dia. Height 3 cm Grate 15 cm | ||

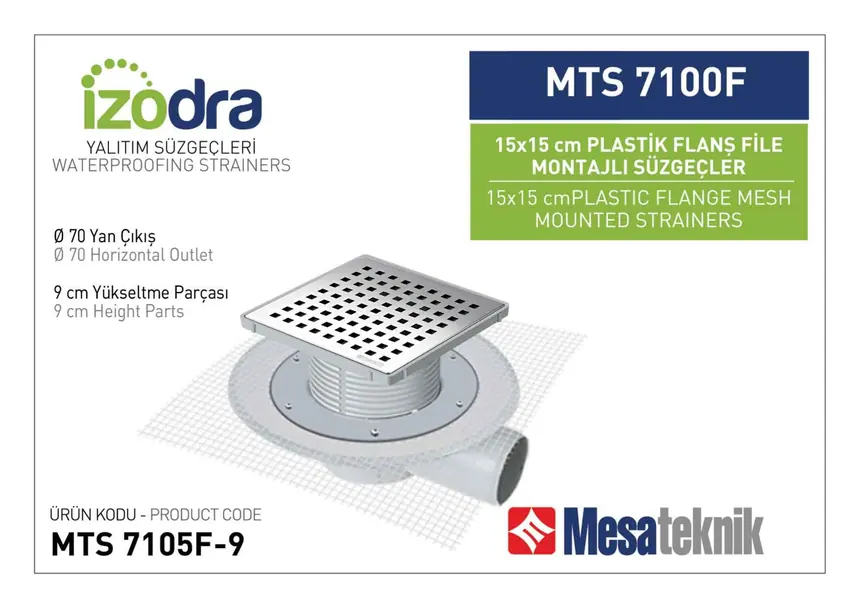

| MTS 7105F-9 | Side-Outlet Systems 70 mm Dia. Height 9 cm Grate 15 cm | ||
| MTS 7105F-15 | Side-Outlet Systems 70 mm Dia. Height 15 cm Grate 15 cm | ||

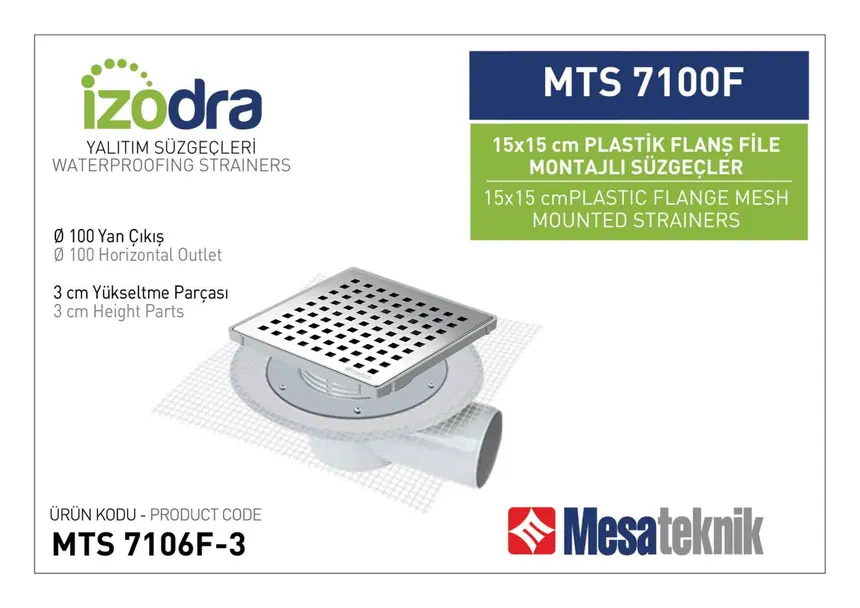

| MTS 7106F-3 | Side-Outlet Systems 100 mm Dia. Height 3 cm Grate 15 cm | ||
| MTS 7106F-9 | Side-Outlet Systems 100 mm Dia. Height 9 cm Grate 15 cm | ||
| MTS 7106F-15 | Side-Outlet Systems 100 mm Dia. Height 15 cm Grate 15 cm | ||

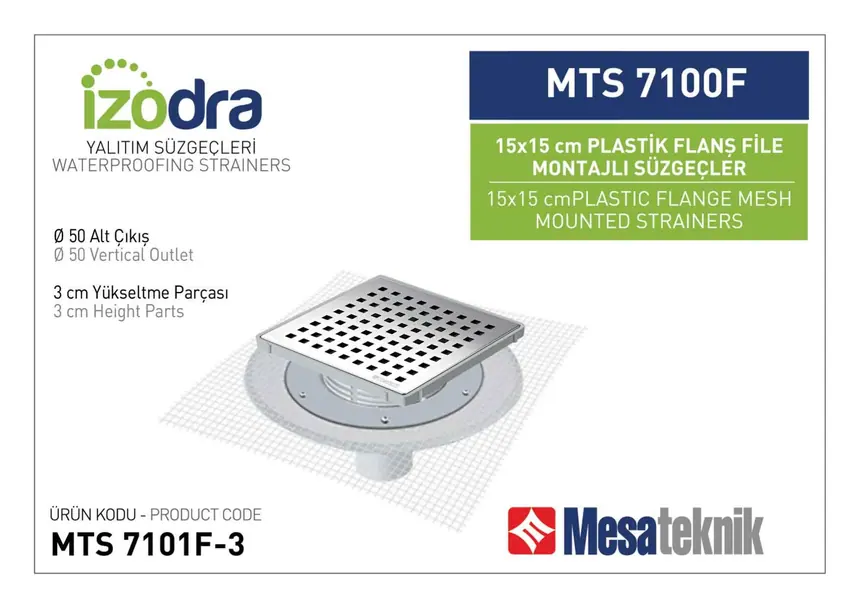

 | MTS 7101F-3 | Bottom-Outlet Systems 50 mm Dia. Height 3 cm Grate 15 cm | ||

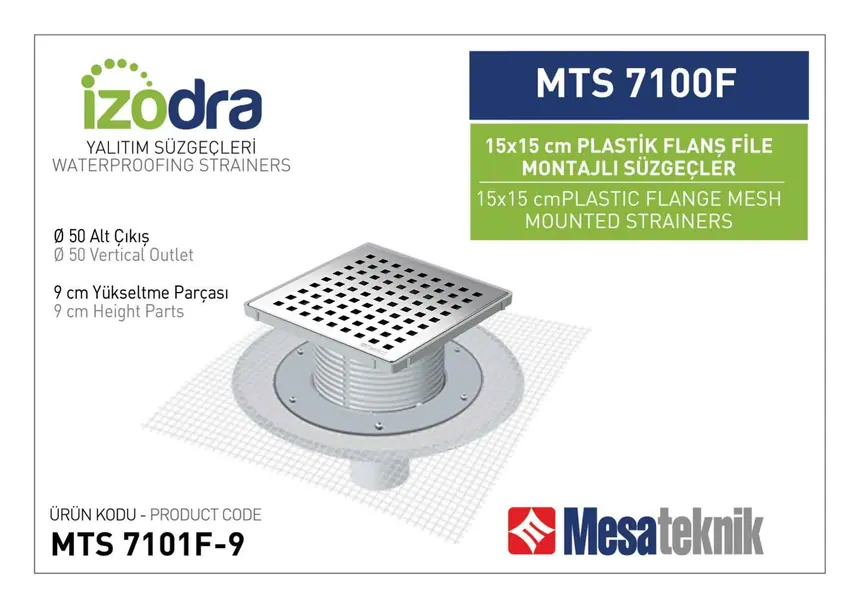

 | MTS 7101F-9 | Bottom-Outlet Systems 50 mm Dia. Height 9 cm Grate 15 cm | ||

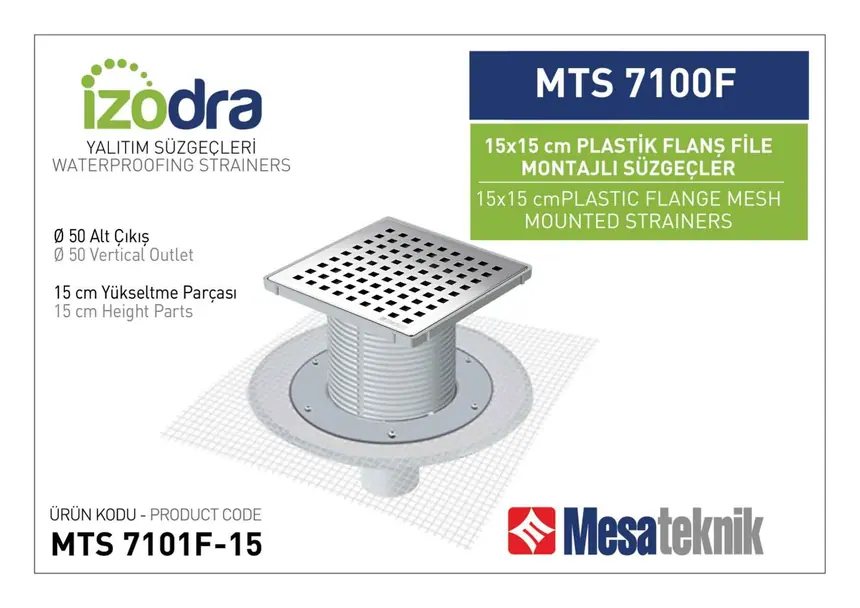

 | MTS 7101F-15 | Bottom-Outlet Systems 50 mm Dia. Height 15 cm Grate 15 cm | ||
 | MTS 7102F-3 | Bottom-Outlet Systems 70 mm Dia. Height 3 cm Grate 15 cm | ||

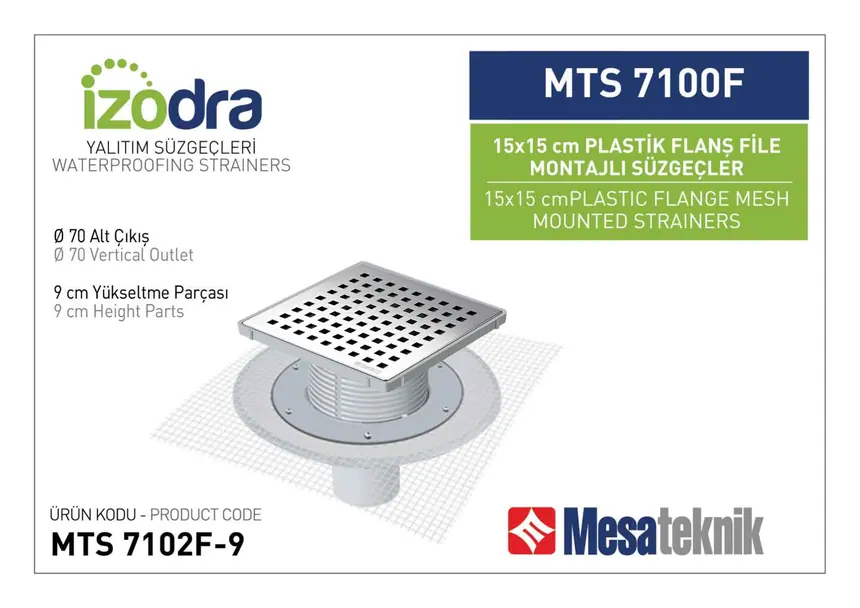

 | MTS 7102F-9 | Bottom-Outlet Systems 70 mm Dia. Height 9 cm Grate 15 cm | ||

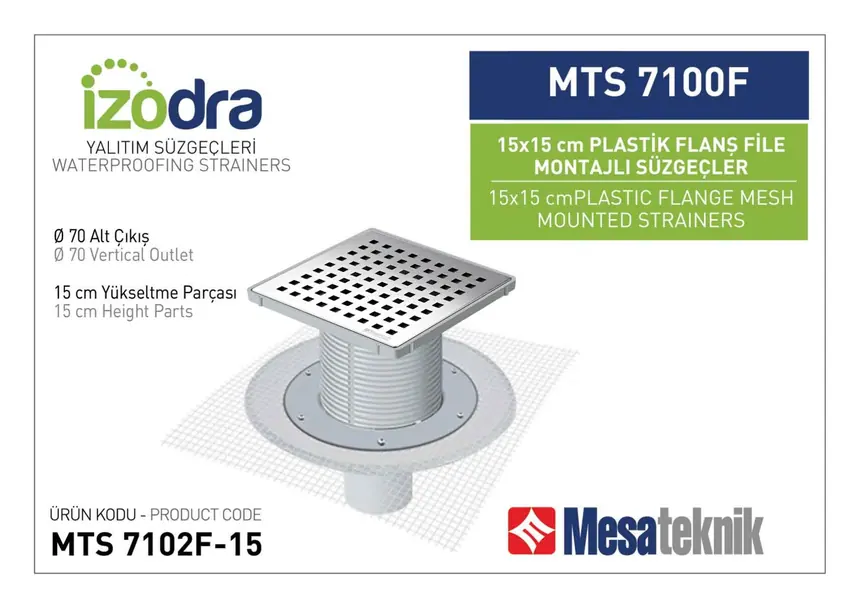

 | MTS 7102F-15 | Bottom-Outlet Systems 70 mm Dia. Height 15 cm Grate 15 cm | ||

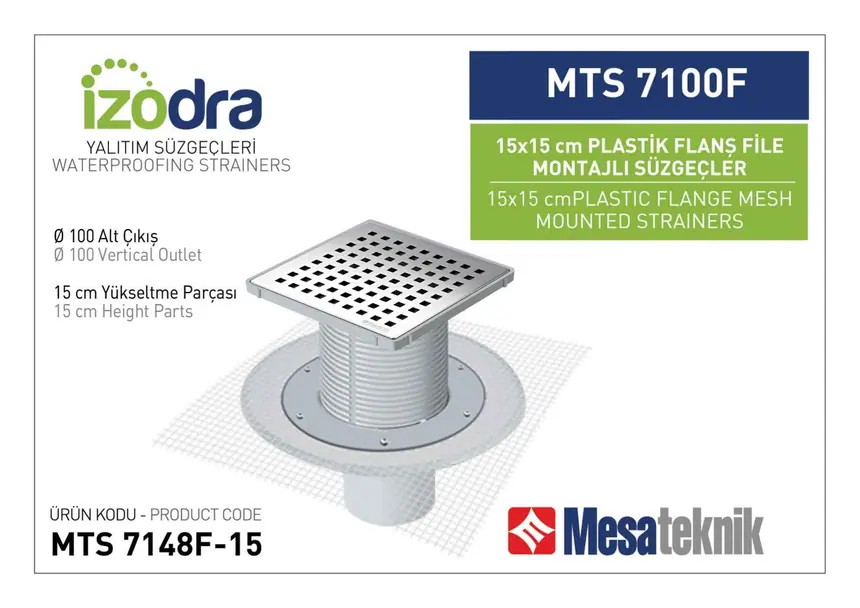

 | MTS 7148F-3 | Bottom-Outlet Systems 100 mm Dia. Height 3 cm Grate 15 cm | ||

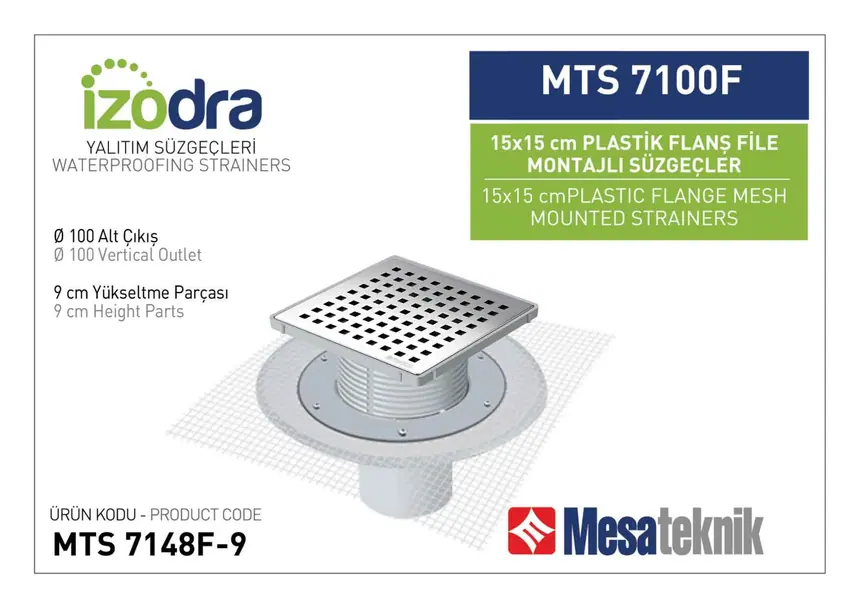

 | MTS 7148F-9 | Bottom-Outlet Systems 100 mm Dia. Height 9 cm Grate 15 cm | ||
 | MTS 7148F-15 | Bottom-Outlet Systems 100 mm Dia. Height 15 cm Grate 15 cm |
Technical specifications
| Body | Plastic |
|---|---|
| Outlet | Side and bottom outlet |
| Outlet Dia. | 32 / 50 / 70 / 100 mm |
| Size Range | 3–15 cm |
| Models | 21 |
