MTS 7500TE Thermo-Elastic Membrane Plastic Flange Mounted Drain Systems 15 cm Push-Open
Waterproofing Drains · Thermo-Elastic Membrane Mounted Drain Systems
Thermo-elastic membrane drains include a flexible TPE collar that is hot-air welded to the membrane for a high-strength, flexible seal. This series includes 7 models, available with side and bottom outlet, 32/50/70/100 mm outlet diameters and 9–15 cm sizes.
Key features
- Plastic body
- side and bottom outlet options
- Watertight connection to the membrane
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 7500TE-9 | Side-Outlet Systems 32 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||

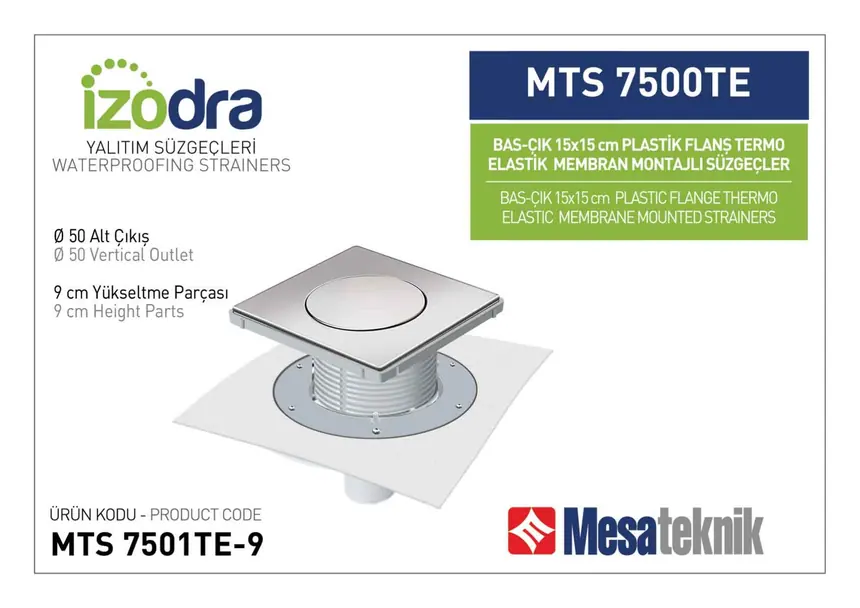

| MTS 7501TE-9 | Bottom-Outlet Systems 50 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||

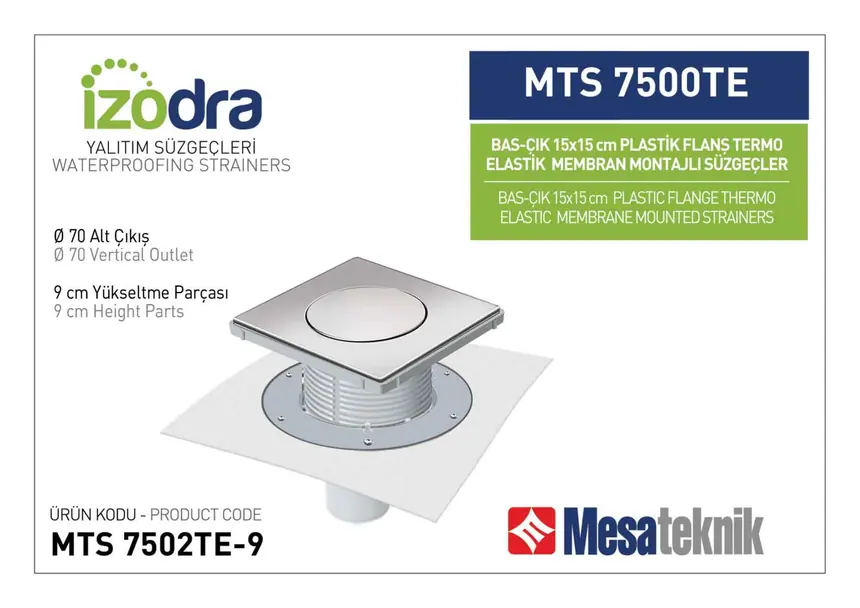

| MTS 7502TE-9 | Bottom-Outlet Systems 70 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||
| MTS 7504TE-9 | Side-Outlet Systems 50 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||

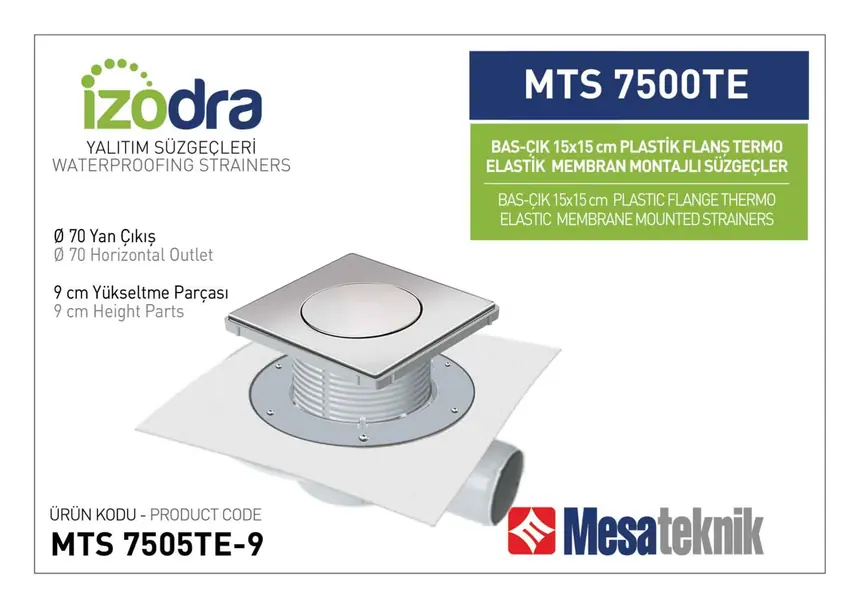

| MTS 7505TE-9 | Side-Outlet Systems 70 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||

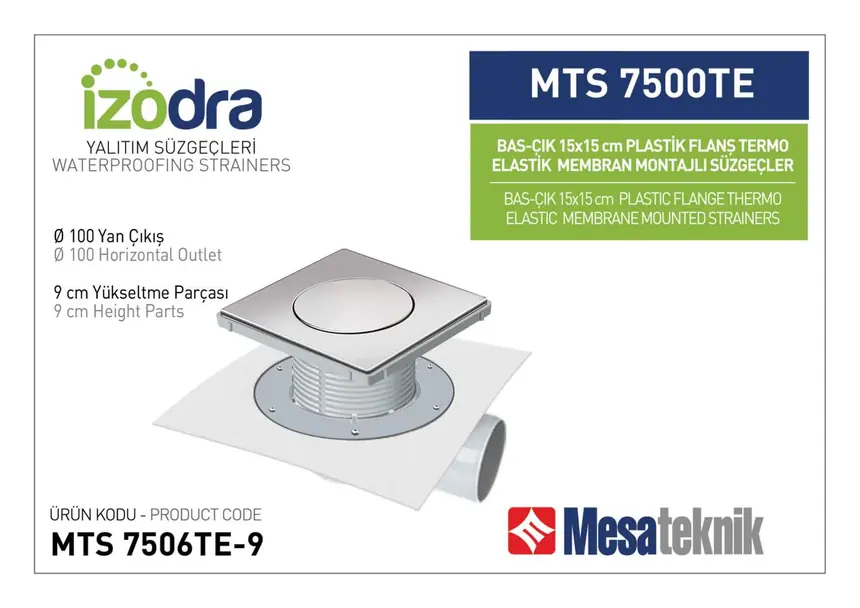

| MTS 7506TE-9 | Side-Outlet Systems 100 mm Dia. Height 9 cm Grate 15 cm Push-Open | ||
| MTS 7548TE-9 | Bottom-Outlet Systems 100 mm Dia. Height 9 cm Grate 15 cm Push-Open |
Technical specifications
| Body | Plastic |
|---|---|
| Outlet | Side and bottom outlet |
| Outlet Dia. | 32 / 50 / 70 / 100 mm |
| Size Range | 9–15 cm |
| Models | 7 |
