MTS 9000F Kendinden Riveted Mesh Drain Systems 10 cm
Waterproofing Drains · Self-Mesh Drain Systems
Self-mesh drains carry a bonded reinforcement mesh that keys perfectly into screed or waterproofing mortar, giving a crack-free surface around the drain. This series includes 18 models, available with side and bottom outlet, 32/50/70/100 mm outlet diameters and 3–15 cm sizes.
Key features
- side and bottom outlet options
- Watertight connection to the membrane
- Easy to install and clean
Sizes & Models
Enter a quantity for any model and add it to your quote list.
| Product code | Size / Spec | Qty | ||
|---|---|---|---|---|
| MTS 9000F-3 | Side-Outlet Systems 32 mm Dia. Height 3 cm Grate 10 cm | ||

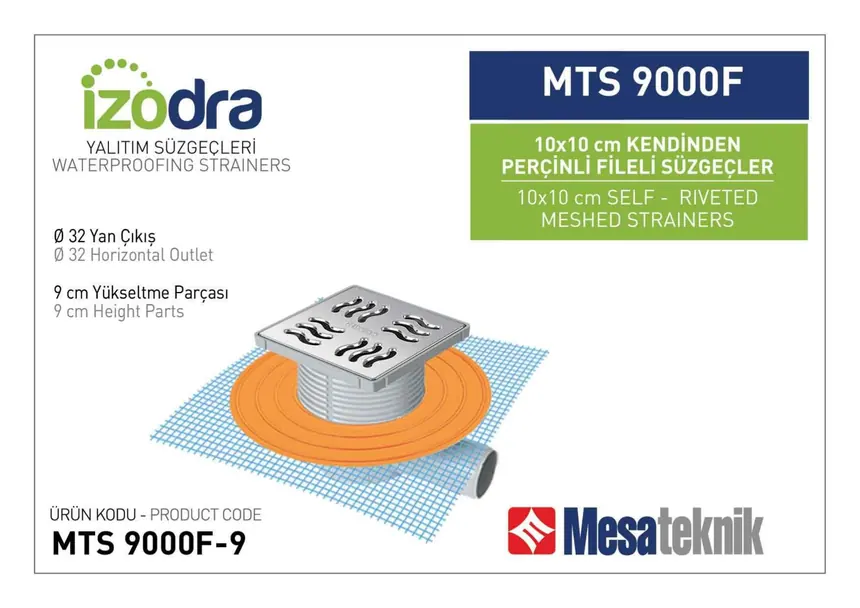

| MTS 9000F-9 | Side-Outlet Systems 32 mm Dia. Height 9 cm Grate 10 cm | ||

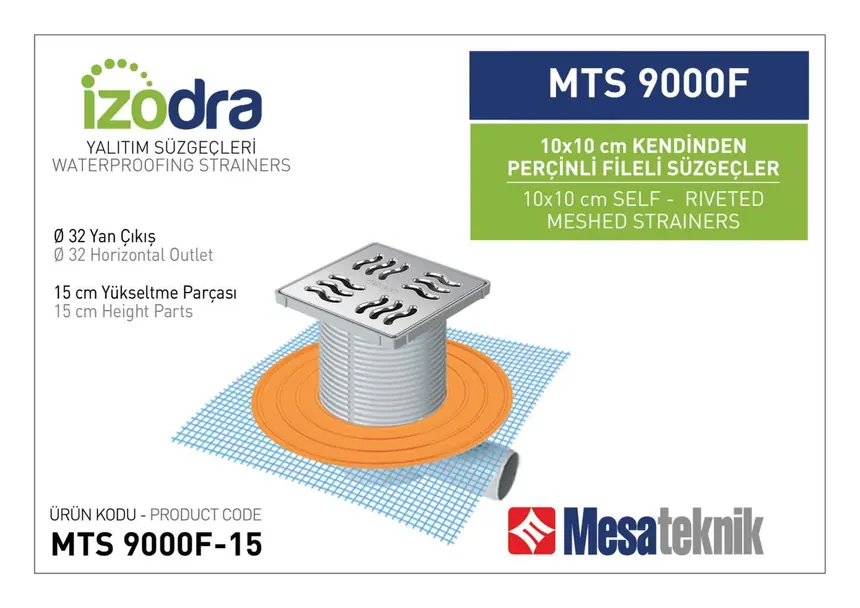

| MTS 9000F-15 | Side-Outlet Systems 32 mm Dia. Height 15 cm Grate 10 cm | ||

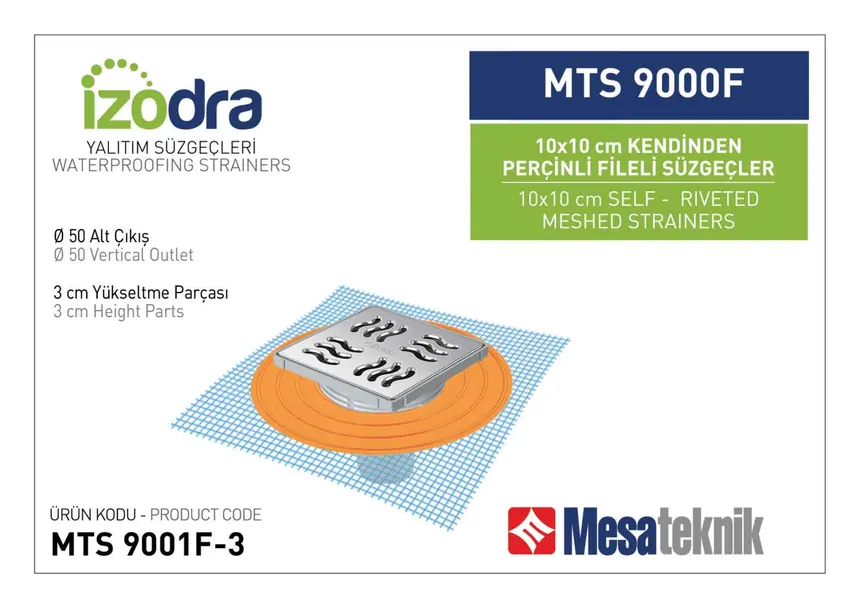

| MTS 9001F-3 | Bottom-Outlet Systems 50 mm Dia. Height 3 cm Grate 10 cm | ||

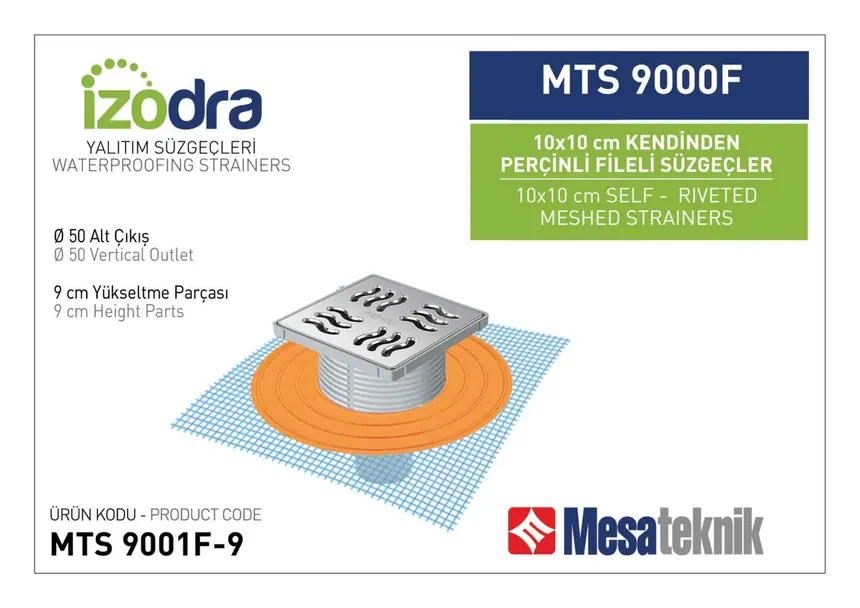

| MTS 9001F-9 | Bottom-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm | ||

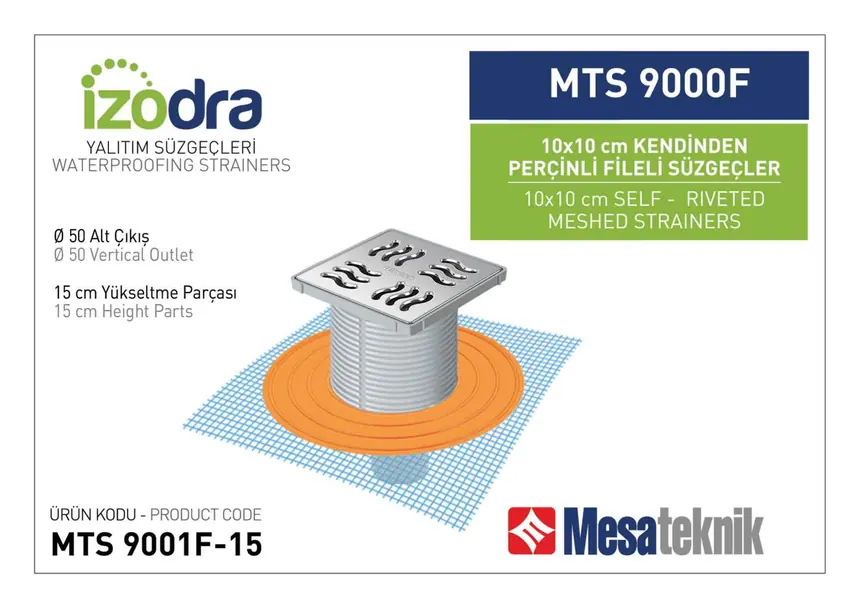

| MTS 9001F-15 | Bottom-Outlet Systems 50 mm Dia. Height 15 cm Grate 10 cm | ||
| MTS 9002F-3 | Bottom-Outlet Systems 70 mm Dia. Height 3 cm Grate 10 cm | ||

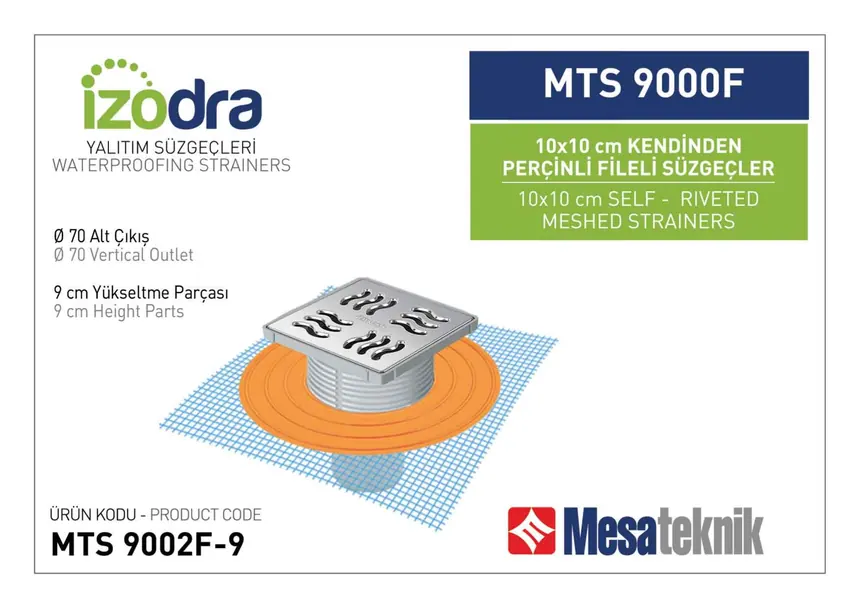

| MTS 9002F-9 | Bottom-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm | ||
| MTS 9002F-15 | Bottom-Outlet Systems 70 mm Dia. Height 15 cm Grate 10 cm | ||
| MTS 9004F-3 | Side-Outlet Systems 50 mm Dia. Height 3 cm Grate 10 cm | ||

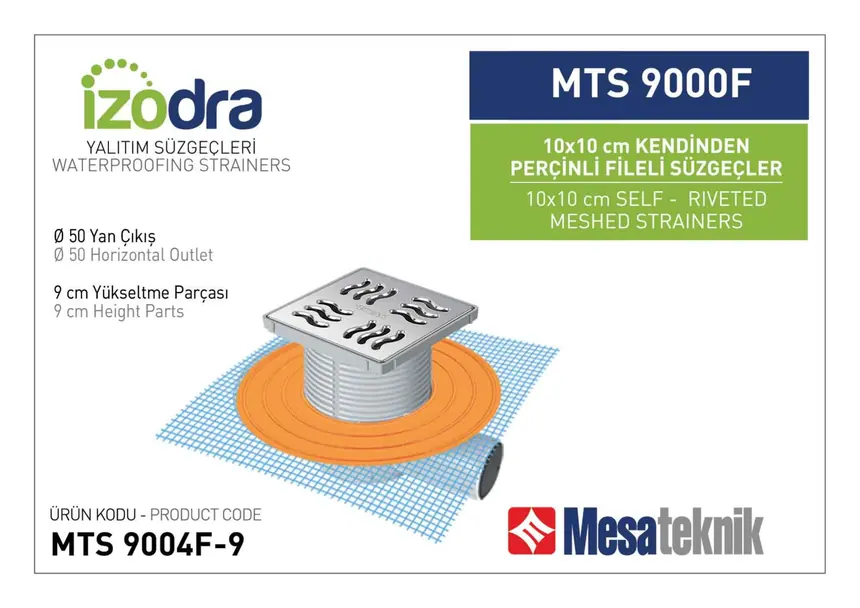

| MTS 9004F-9 | Side-Outlet Systems 50 mm Dia. Height 9 cm Grate 10 cm | ||
| MTS 9004F-15 | Side-Outlet Systems 50 mm Dia. Height 15 cm Grate 10 cm | ||

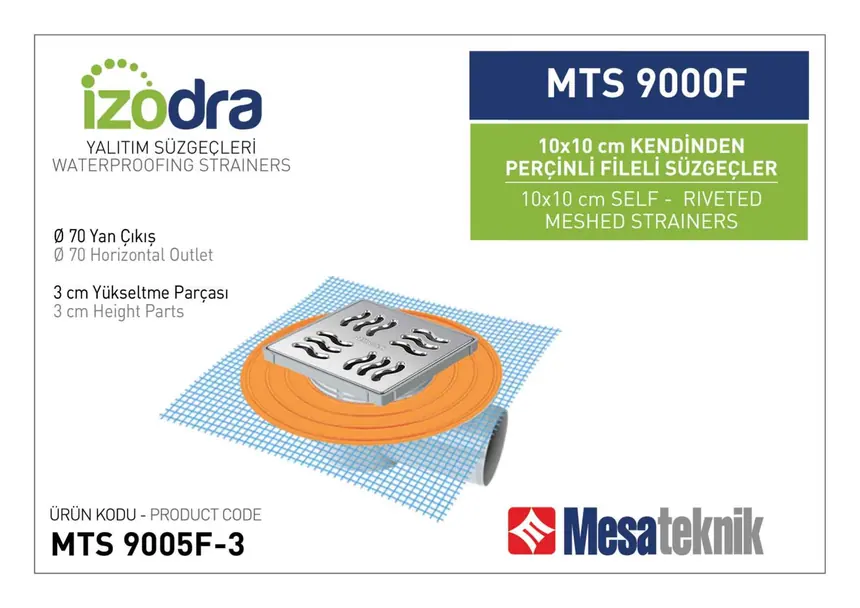

 | MTS 9005F-3 | Side-Outlet Systems 70 mm Dia. Height 3 cm Grate 10 cm | ||

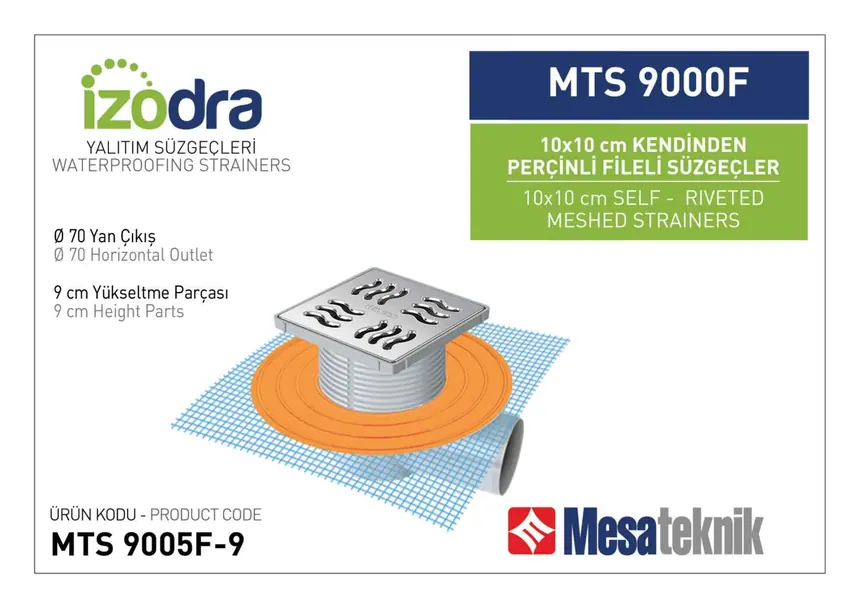

 | MTS 9005F-9 | Side-Outlet Systems 70 mm Dia. Height 9 cm Grate 10 cm | ||

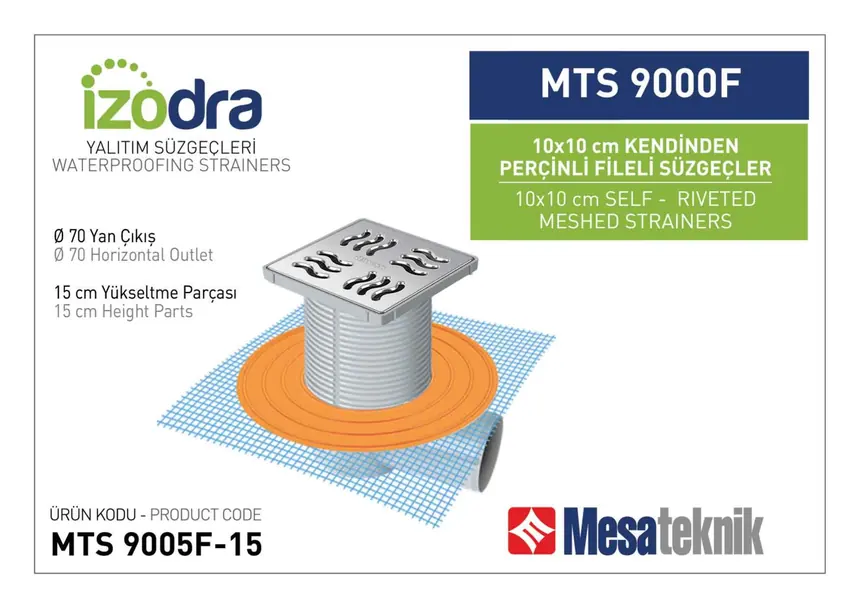

 | MTS 9005F-15 | Side-Outlet Systems 70 mm Dia. Height 15 cm Grate 10 cm | ||

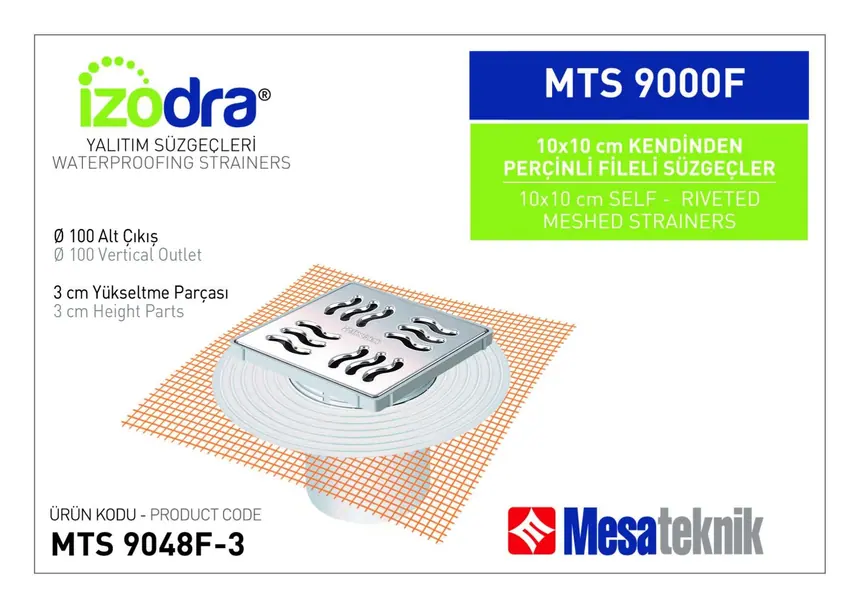

 | MTS 9048F-3 | Bottom-Outlet Systems 100 mm Dia. Height 3 cm Grate 10 cm | ||

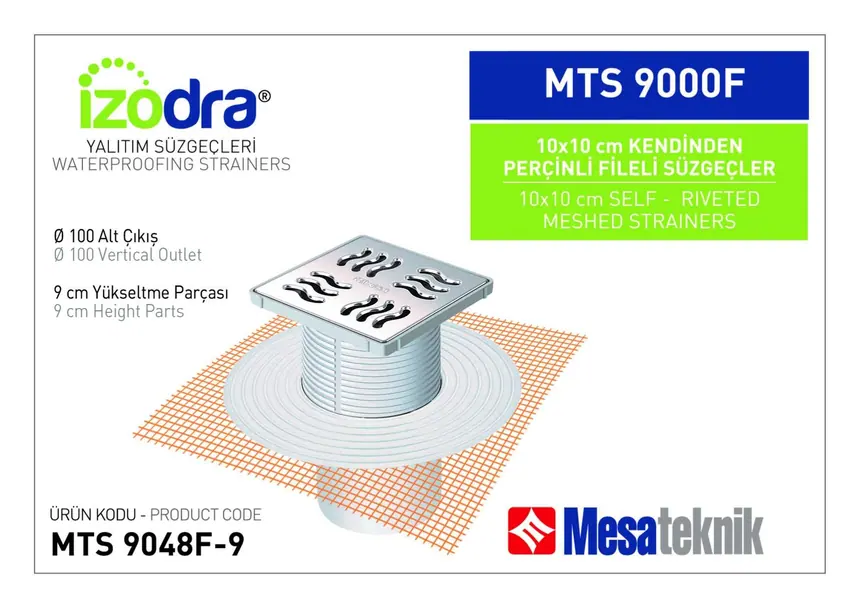

 | MTS 9048F-9 | Bottom-Outlet Systems 100 mm Dia. Height 9 cm Grate 10 cm | ||

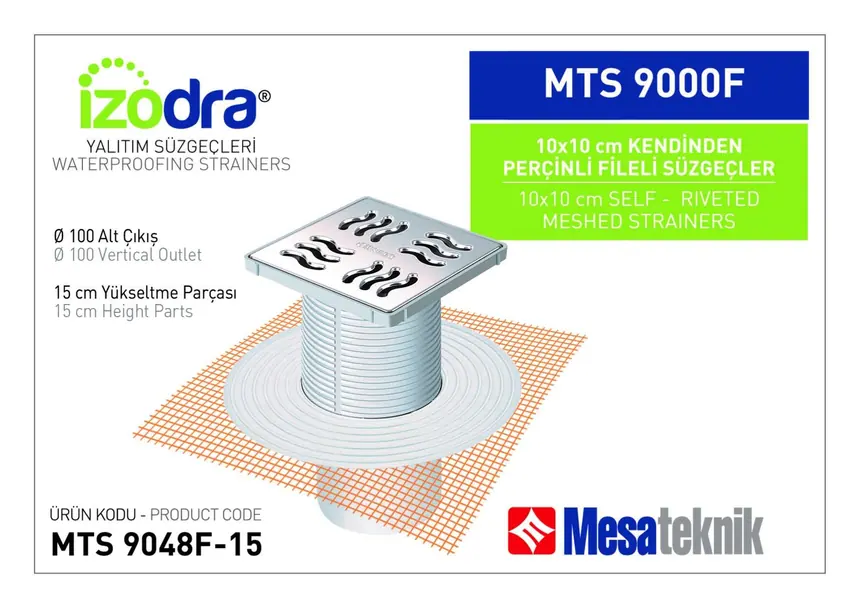

 | MTS 9048F-15 | Bottom-Outlet Systems 100 mm Dia. Height 15 cm Grate 10 cm |
Technical specifications
| Outlet | Side and bottom outlet |
|---|---|
| Outlet Dia. | 32 / 50 / 70 / 100 mm |
| Size Range | 3–15 cm |
| Models | 18 |
